| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Metal Fiber Laser Marking Machine | Laser Type: | Fiber Laser |
|---|---|---|---|
| Cooling Mode: | Air Cooling | Laser Power: | 20W,30W,50W,100W |
| Key Selling Points: | Multifunctional | CNC Or Not: | Yes |
| Minimum Character: | 0.2 Mm | Working Accuracy: | 0.01mm |
| Laser Wavelength: | 1064nm | Marking Speed: | 7000-12000mm/s |
| Marking Area: | 110*110mm/175*175mm/200*200mm/300*300mm | Marking Depth: | 0.01mm Laser Marker On Metal |
| High Light: | Fiber Laser Marking Machine 30w,20W Laser Metal Engraving Machine,20w fiber laser engraving machine |
||

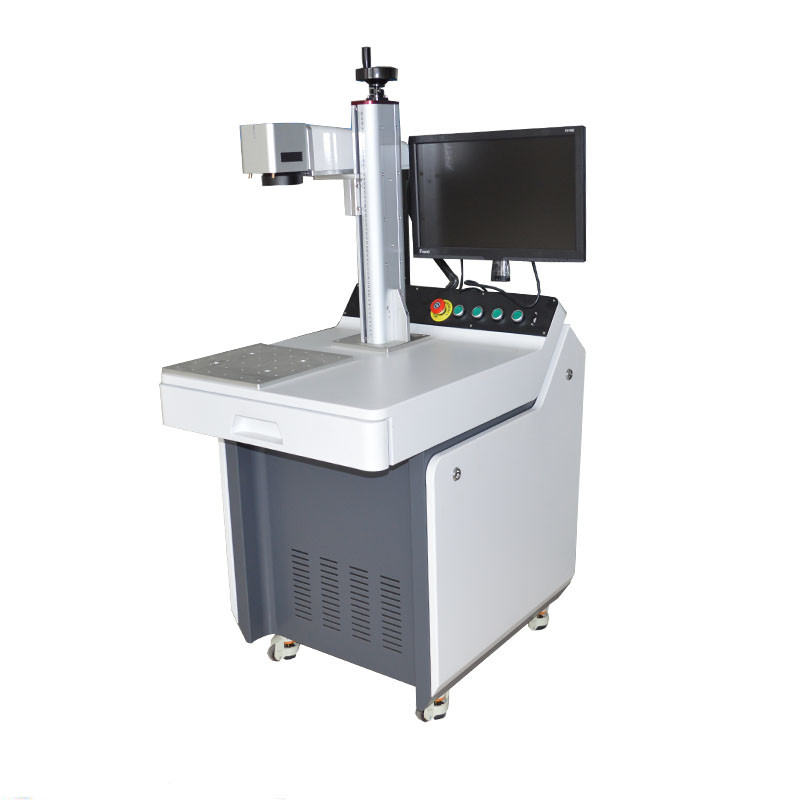

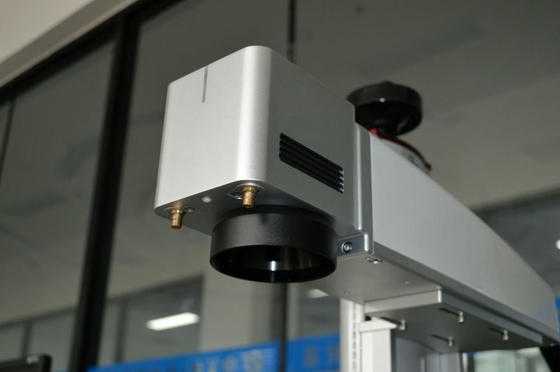

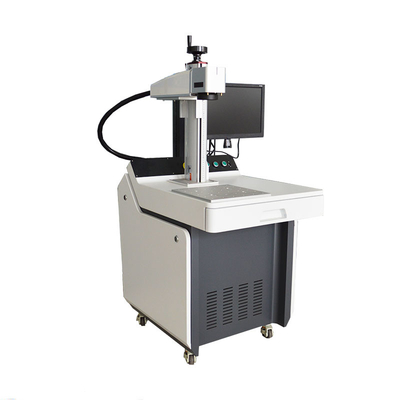

20W 30W 50W 100W Metal Steel Marking Engraving Machine
Laser marker Features
1. Excellent beam quality: This series of fiber laser marking machines are much better than the traditional marking machine, condensation diameter is less than 20um, divergence angle is 1/4 of the semiconductor pumping source laser, used in accurate marking
2. Low use-cost: high turnover ratio between electricity and laser, the whole machine power consumption is less than 500W, which is 1/10 of light pumping source laser
3. Maintenance-free Operation: There is no need of any maintenance for laser, or to adjust /clean the lens
4. Fast marking speed, 2-3 times faster than the traditional marking machine
5. Long working life: using fiber laser as pumping source, the working hours can reach as long as 100,000 hours
6. Rotary system is optional, thus, accomplish marking on cambered surface.
7. Air-cooling, no water chiller like YAG laser marker, easy transportation. Portable type is available.
8. This machine won't be affected by bad environment and the temperature change.
Laser marker Parameters
| Model | TPF-20W 30W 50W 100W |
| Laser source | Raycus |
| Laser power | 20W,30W,50W,100W |
| Weave length | 1064 nm |
| Marking area | 110*110mm,175*175mm,220*220mm,300*300mm,500*500mm |
| Laser repetition frequency | 20KHZ-80KHZ |
| Beam quality | M²:1.5 |
| Marking speed | 7000-12000mm/s |
| Marking depth | 0.01-1mm |
| Repetition Precision | 0.01mm |
| Minimum Line Width | 0.017mm |
| Minimum Character | 0.2 mm |
| Cooling Style | Air cooling |
| Positioning Way | Red light |
| Laser Module Life | More than |
| Control software | JCZ EZCAD 2.12 Professional fiber laser marking software |
| Supported Format | PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC |
| Control board | JCZ |
| Operating Voltage | AC220V/50HZ/2A |
| Gross Power | ≤500W |
| Supported Windows | Windows XP,7,8,10 |
| Certificate | ISO, CE, FDA |
| Material can be processed | all metal material and part of non-metal material,such as hard plastic |
| Others | USB cable for connection, Flash drive with software and English manuals. |
| After-sales Service |
Warranty for 3 years.We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training. When you have any questions, no matter machine or operate, you can contact us directly. If any parts broken, we will replace a new one for you in free. After warranty we will still supply lifetime maintenance in free. Just with parts cost charging if broken. |
| Packaging | Wooden box |
| Packaging Dimension | 645*710*1180mm |
| Gross weight | 100kg |
