| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Portable Metal Marking Machine | Laser Power: | 10W 20W 30W |
|---|---|---|---|
| Marking Area: | 200mm*200mm | Laser Type: | Fiber Laser |
| CNC Or Not: | Yes | Cooling Mode: | Water Cooling |
| Key Selling Points: | High-accuracy | Laser Wavelength: | 1064nm |
| Marking Filed: | 110*110mm | Weight (KG): | 50 KG |
| Working Accuracy: | 0.01mm | Marking Deepth: | 0.01-0.2MM |
| Marking Speed: | <= 12000mm/s | Power Supply: | 220V 50HZ / 2A |
| High Light: | 30w fiber laser marking machine,Portable CNC Laser Marking Machine,1064nm Portable Laser Marker |
||

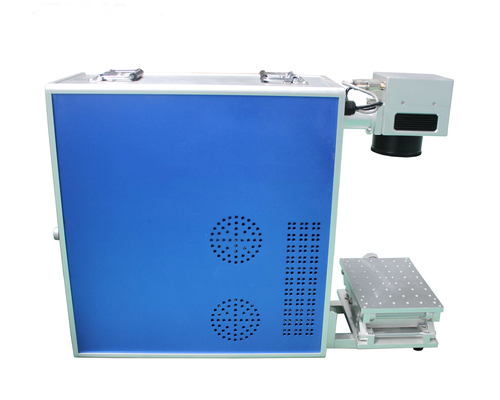

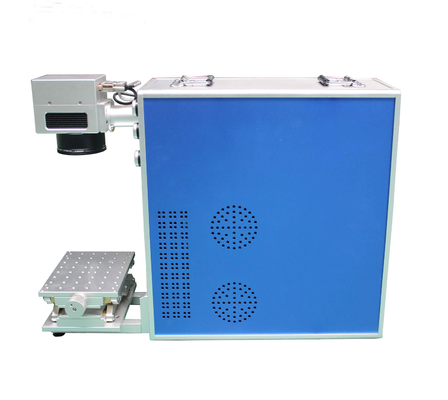

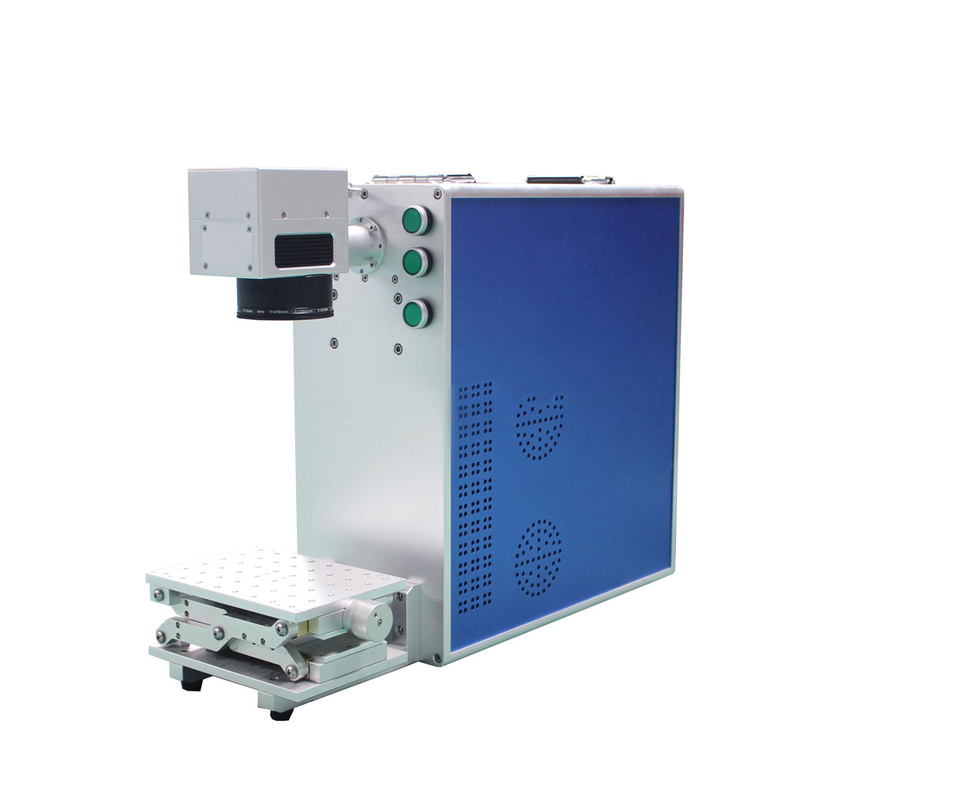

Portable Fiber Laser Marker Machine
Industry Application
fiber laser marking machine was specially developed for industrial marking. The robust design with maintenance-free laser source guarantees constantly precise marking on the workpiece. Thanks to the modular structure of the laser and the large number of possible options, you can optimally adapt the SpeedMarker FL to your existing processes.
Applicable Materials
Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium), metal oxides (metal oxide may be), special surface treatment(Phosphatize, aluminum anodizing, electroplating the surface), ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin (electronic components, packaging, insulation layer).etc.
Parameter
|
|
HT-10 |
HT-20 |
HT-30 |
|
LASER POWER |
10W |
20W |
30W |
|
LASER WAVELENGTH |
1064nm |
1064nm |
1064nm |
|
FIBER LENGTH |
2.5m |
2.5m |
2.5m |
|
LASER UNIT USING LIFE |
100,000 hours |
100,000 hours |
100,000 hours |
|
MARKING SPEED |
<= 12000mm/s Character marking speed and production line speed depend on material , character size and desired marking quality |
||
|
MARKING SPEED |
2-3 digital(2*3mm)/ 0.01s |
3-5 digital(2*3mm)/ 0.01s |
5-8 digital(2*3mm)/ 0.01s |
|
MARKING DEEPTH |
0.01-0.2MM |
0.01-0.2MM |
0.01-0.5mm |
|
MIN. LINE WIDTH |
0.01MM |
0.01MM |
0.01MM |
|
MIN. CHARACTER HEIGHT |
0.2MM |
0.2MM |
0.2MM |
|
MARKING FILED |
(110*110mm (focal length f=160mm) |
(110*110mm (focal length f=160mm) Optional 175mm lens |
(110*110mm (focal length f=160mm) Optional 175mm lens , 250mm lens |
|
POWER SUPPLY |
220V 50HZ / 2A |
220V 50HZ/2A |
220V 50HZ/2A |
|
POWER CONSUMPTION |
300 W/ hours |
800W/ HOUR |
1000W/HOUR |
|
COOLING |
AIR |
AIR |
AIR |
|
POSITIONING |
Visible red power |
Visible red power |
Visible red power |
|
OPERTAION TEMPERATURE |
25℃ to 28℃ |
25℃ to 28℃ |
25℃ to 28℃ |
|
HUMIDITY |
5% to 75% (no condensation) |
5% to 75% (no condensation) |
5% to 75% (no condensation) |
