| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Diode Pump Laser Marking Machine | Laser Power: | 10W/20W/30W/50W |
|---|---|---|---|
| Marking Scope: | 70*70mm Or 110*110mm Or 150*150mm Or 200*200mm | Max Marking Speed: | 7000mm/s |
| Engraving Area: | 300mm*200mm | Working Area: | 30cm*20cm/12in*8in(L*W) |
| Power Supply:: | 220V/50HZ 110V/60HZ | Weight (KG): | 60 KG |
| Core Components: | PLC | Key Selling Points: | Easy To Operate |
| High Light: | 60 KG Diode Laser Marker,20W Diode Laser Marking Machine,30W Diode Laser Marking Machine |
||

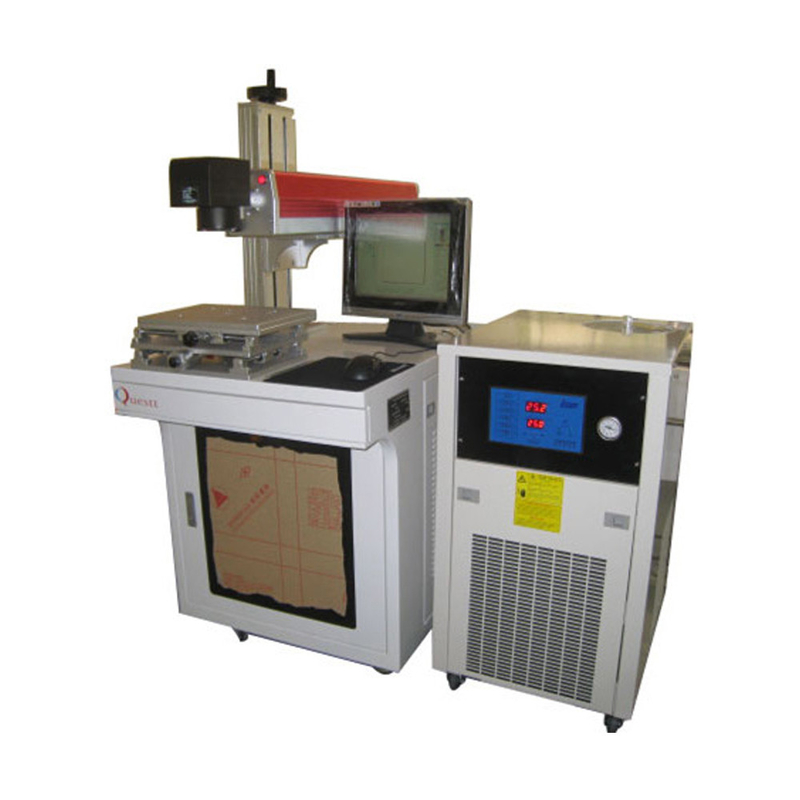

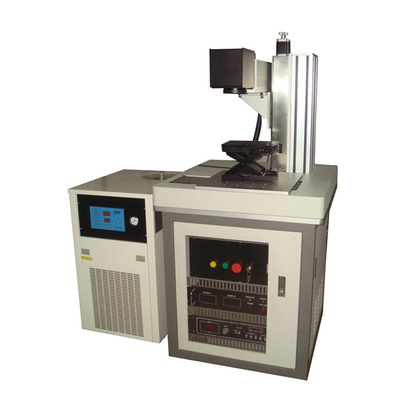

Metal / Non Metal Material Diode Laser Marking Machine
Adopting Diode side-pump laser as pump heads tream, diode pump laser marking machine replace the lamp pump, which has such characters: high ratio photo translating, laser beam with high quality, compactness, low running cost, easy to install and operate, good stabilization, free of maintenance and so on. Whole sealing optical system, constant temperature which makes the whole equipment more stable, input facula diameter is smaller. It is suitable for high precision with high speed.
Typical Application
It can be widely used in IC, computer fittings, industry bearing, timekeeper, electronic device, communicate device, space and aviation device, automobile parts, home appliances, hardware, electrical wire and cable, clothing, food packing, jewelry, cigarette etc. to mark the characters and graphics.
Basic Specification
Ø Side-pumped Diode Laser and Laser Power supply
Ø Q-SWITCH Crystal from UK and Q-SWITCH Driver
Ø High speed Galvo scanner
Ø High quality F-θ Lens
Ø USB driver D/A CARD and Special marking System
Ø Worktable (X-Y-Z=100*100*250mm)
Ø Water Chiller with filter and ion-exchange rosin.
|
Tyrex-DP50 Diode-pumped Laser marker |
|
|
SPECIFICATION |
|
|
Laser medium |
Nd3+:YAG |
|
Light wavelength |
1.06μm |
|
MAX output power |
50W(Sidepumped Diode laser) |
|
Repeated Frequency |
200Hz-50KHz |
|
Max Marking Speed |
7000mm/s |
|
The marking scope |
70*70mm or 110*110mm or 150*150mm or 200*200mm |
|
File format |
PLT DXF AI DST BMP JPG TIF |
|
Repetition precision |
0.02mm |
|
The marking depth |
0.05mm~0.2mm (according to the material) |
|
Communication Interface |
USB |
|
Power supply |
220V / 50Hz / 2kVA |
|
Worktable standard |
200mm*200mm*350mm(up to request) |
|
Components |
Main cabinet, power cabinet, X-Y-Z motorized worktable, heat exchanger, cooling system |
|
Weight and volume |
150Kg, 1.5M3 |
