| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Industrial Laser Marking Equipment | Laser Wavelength: | 1064nm |
|---|---|---|---|
| Laser Source: | Diode Module | Marking Range: | 160x160mm |
| Marking Speed: | 7000mm/S | Marking Depth: | 0.5mm |
| Maintenance: | Free | Repeat Accuracy: | 0.002mm |
| Input Power: | 3KW | Machine Dimensions: | 1135x635x1310mm |
| High Light: | 1064nm Industrial Laser Marking Machine,7000mm/s Metal Laser Marking Machine,3KW Diode Laser Marking Machine |
||

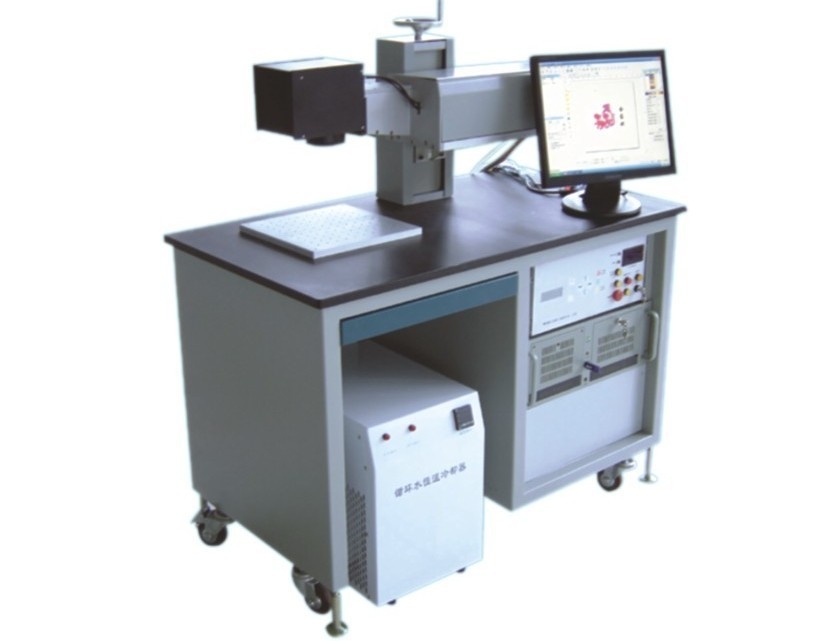

Diode Module Industrial Laser Marking Machine For Metal
Product features:
Used the most advanced laser technology, adopts semiconductor & 808nm wavelength and diode side-pump Nd:YAG.. The laser is small, the size is about 1/4 of the traditional. The optical system is airproof, and you can preview the laser route also. It is easy to operate the machine. More important is the outside cooling system with low noise, control the temperature more easy which make the machine work long time continuously. The laser, power supply and working platform is integrated. It can mark more efficiency & precision.
Technical data:
| Max. Laser Average Power | 50W |
| Laser Wavelength | 1064nm |
| Laser Beam Quality (M2) | <4 |
| Laser Repeat Frequency | 50kHZ |
| Laser Marking Range | 160x160mm |
| Marking Depth | 0.5mm |
| Marking Speed | 7000mm/S |
| Min. Line Width | 0.015mm |
| Repeat Accuracy | 0.002mm |
| Input Power | 3KW |
| Power Consumption | 1.5KW |
| Electrical Source | 220V/single-phase/50Hz/15A |
| Machine Dimensions | 1135x635x1310mm |
| Cooling System Dimensions | 670x300x475mm |
Applications & materials
It is suitable for marking on various metal and nonmetal materials. Electronic components, IC, electrical appliances, mobile phones, hardware, tools, precision instruments, eye glass frames, clocks and watches, motor accessories, plastic buttons, building materials, drug and food packaging, medical instruments, PVC pipe and so on.
