| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Laser Metal Engraving Machine | Laser Type: | Fiber Laser |
|---|---|---|---|
| Cooling Mode: | Air Cooling | Laser Power: | 20W/30W/50W/100W |
| Key Selling Points: | Easy To Operate | CNC Or Not: | Yes |
| Minimum Character: | 0.15mm | Working Accuracy: | 0.005mm |
| Laser Wavelength: | 1064nm | Marking Speed: | 10000 Mm/s |
| Marking Area: | 110mm*110mm / 150mm*150mm / 175mm*175mm / 200*200mm | Marking Depth: | 0.1~ 1.2mm ( Depending On The Material ) |
| High Light: | 100W Metal Laser Marking Machine,10000mm/s Metal Laser Marking Machine,50W Metal Laser Marker |
||

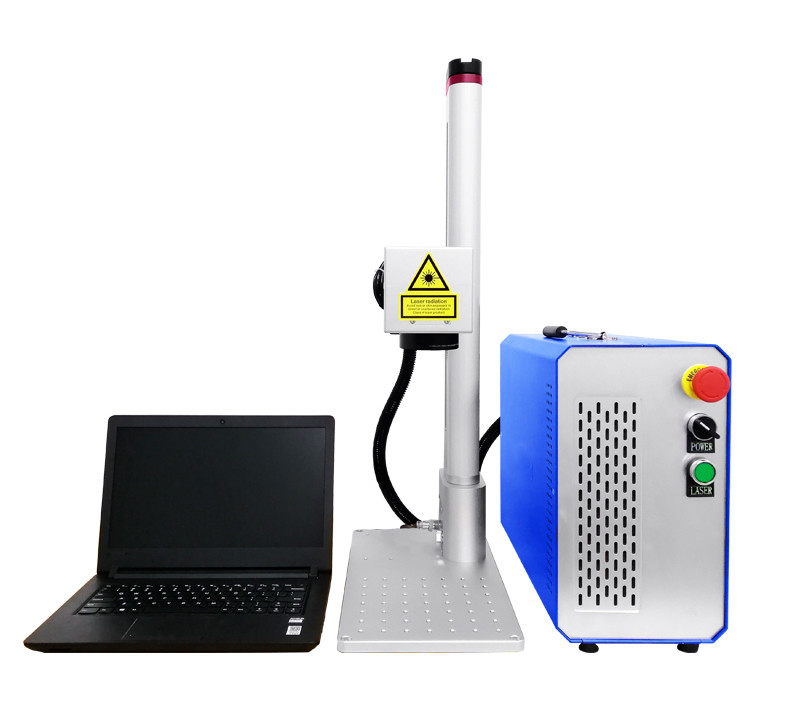

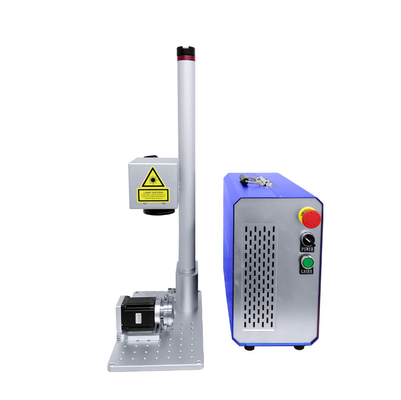

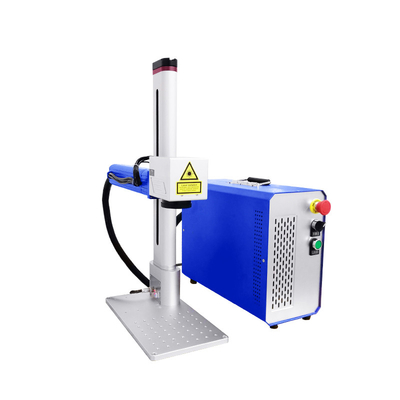

Raycus Portable Mini Laser Engraving Machine For Metal
Product Introduction:
Portable mini metal engraving fiber laser marking machine 20W 30W 50W Raycus IPG is computer-controlled, environmentally friendly and offer the benefits of non-contact abrasion-resistant permanent engravings onto almost any type of material including precious metals.
Higher powered laser engraving systems are also able to cut thin metals for creating monogram and name necklaces as well as other intricate design cutouts.
* Compact: The high-tech product, which is combined of laser device, computer, auto controller and precision machinery.
* High Precision: Re-position precision is 0.002mm.
* High Speed: Scanning system makes the scanning speed up to 7m/s.
* Easily Operating: Afford the specific coding software based on Windows, you can input and output by computer according to edit in the both of the specific coding software and the graphic software such as Auto CAD, CorelDRAW and Photoshop.
* High Reliability: MTBF>100,000 hours.
* Energy Saving: The efficiency of optic-electrical converting is up to 30%.
* Low Running Cost: No wearing part. Free maintaining.
Technical Parameters:
|
Product Name |
Portable mini metal engraving fiber laser marking machine 20W 30W 50W Raycus IPG price |
|
Model |
BEC-FB20/BEC-FB30/ BEC-FB50 /BEC-FB100 |
|
Laser Power |
20W, 30W, 50W, 100W optional |
|
Laser Source Brand |
Raycus / JPT / IPG optional |
|
Marking Area |
110mm*110mm / 150mm*150mm / 175mm*175mm / 200*200mm |
|
Marking Depth |
0.1~ 1.2mm ( Depending on the material. ) |
|
Marking Speed |
10000 mm/s |
|
Minimum Line Width |
0.01mm |
|
Minimum Character |
0.15mm |
|
Laser Lifetime |
100000 hours |
|
Beam Quality |
M2<1.5 |
|
System Operation Enviornment |
Windows XP / W7--32/64bits / W10--32/64bits |
|
Cooling Method |
Air cooling |
|
Electricity Demand |
220V / 50HZ / single phase or 110V / 60HZ / single phase |
|
Equipment Size |
85*65*55 cm |
|
Gross Weight |
68KG |
|
Optional Parts |
Laptop, rotary fixture, 2D/3D platform, fume exhaustor, etc. |
