| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Laser Marking Machine On Metal | Laser Type: | Fiber Laser |
|---|---|---|---|
| Cooling Mode: | Air Cooling | Laser Power: | 20W/10W |
| Key Selling Points: | Easy To Operate | CNC Or Not: | Yes |
| Working Accuracy: | 0.01mm | Laser Wavelength: | 1064nm |
| Marking Speed: | >=7000mm/s | Minimun Line Width: | 0.01mm |
| Repeat Positioning Accuracy: | ±0.003m | ||
| High Light: | 1064nm Stainless Steel Laser Marking Machine,20W Metal Laser Marking Machine,20w Fiber Laser Marking Machine |
||

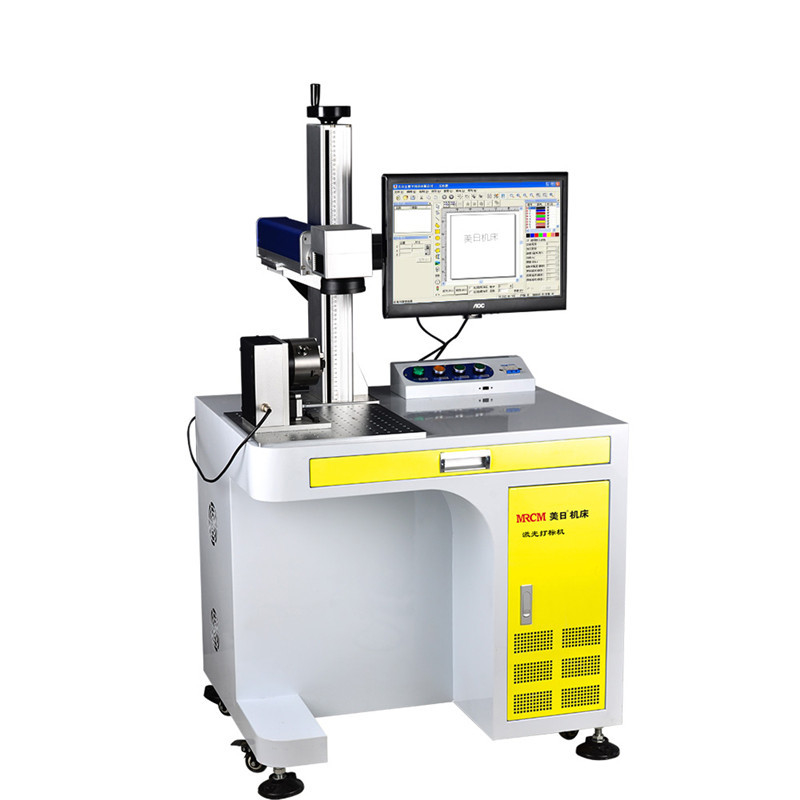

Fiber Metal Laser Marking Machine For Stainless Steel
Product Description
1. MR-DB20W lasr machine for stainless steel, metal plate,aluminum, silver, gold with lower price of Fiber Laser Marking Machine
2. Our Fiber Laser Series provide highest marking results ,which is capalbe of provinding one kind of solution for your marking needs. Print to the laser directly from EZ-CAD software program for easy job setup, and mark an entire table full of parts at one time.
3. Our Fiber Laser Marking Machine are widely used in the marking for auto ,motocycle parts,packaging for goods,beverage , cigarette. nameplate, jewellery, watches. It is capable of achieving all kinds of images in all colours.
4. Our fiber laser beam can mark and cut your designs on bare metal and some plastics.
|
Modle |
DB20W |
|
Laser power |
10W, 20W |
|
The engine power |
800W |
|
Working voltage |
220V |
|
The laser wavelength |
1064nm |
|
Cooling way |
Air cooling |
|
Engraving speed |
≤7000 m/s |
|
Minimun line width |
0.01mm |
|
Repeat positioning accuracy |
±0.003m |
|
Beam quality |
m² 1.4-2.0 ( <2 ) |
|
Fiber length |
2m/ 3m |
|
The laser repetition rate |
20-80KHZ |
|
The laser pulse energy |
0.8-1MJ@ 25KHZ |
|
Engraving depth |
0.01mm-0.7mm |
|
Divergence Angle |
0.3mrad |
