| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Diode Laser Marker | Laser Power: | 50W ( 75W And 100W Optional ) |
|---|---|---|---|
| Marking Scope: | F=160mm(standard) | Laser Marking Speed: | 7000mm/s |
| Laser Wavelengh: | 1064nm | Current Adjustment Scope: | 0-25A |
| Cooling Way: | Water Cooling | Min.line Wideth: | 0.015mm (depend On Material) |
| Modulate Frequency: | 200HZ-50KHZ | Marking Materials: | All Metals And Most Of Nonmetal Materials |
| High Light: | 100W Diode Laser Marking Machine,7000mm/s Diode Laser Marker,75W Diode Laser Marking Machine |
||

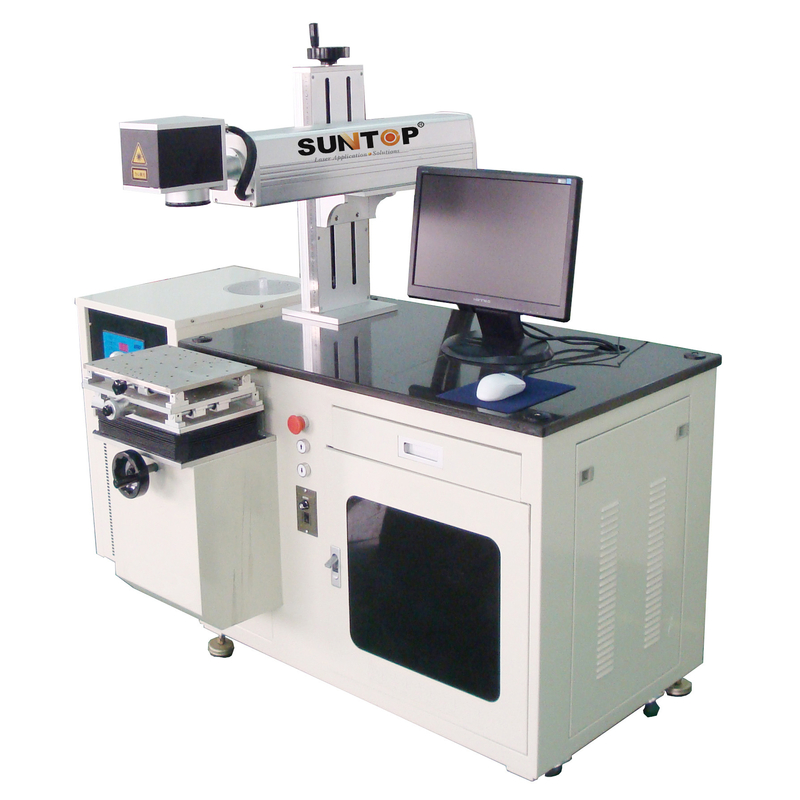

Water Cooling 50W 75W 100W Diode Laser Marking Machine
1. Machine's general introduction
This kinds of diode laser marker the laser source inside key parts are imported from USA. comparing the fiber laser marker, it has the economic cost performance but the marking quality is good also, it's suitable for a small workshop and private factories to meet their daily scattered marking.
2. Machine's main features
◆ Full sealed optical system, maintenance-free
◆ The key components used in all international brand.
◆ Red light positioning, electric lift, low energy consumption
◆ High precision marking the quality, no demming, marking white, marking black, depth marking.
◆Suitable for continuous assemble line work, software can data preservation, traceability and automation of movement.
◆ National patent optic sealed design, double rise and down working table.
3. Machine's main technical specifications
|
Whole machine consumption power |
1000W |
|
Marking scope |
F=160mm(standard) |
|
Laser marking speed |
7000mm/s |
|
Laser repeat frequency |
10KHZ-80KHZ |
|
Min.line wideth |
0.015mm (depend on material) |
|
Max.single marking depth |
≤0.3mm (depend on material) |
|
Min. character |
0.1mm |
|
Laser output power |
50W (75W or 100W are optional) |
|
Modulate frequency |
200HZ-50KHZ |
|
Laser wavelengh |
1064nm |
|
Current adjustment scope |
0-25A |
|
Cooling way |
Water cooling |
|
Input voltage |
220V/50-60HZ |

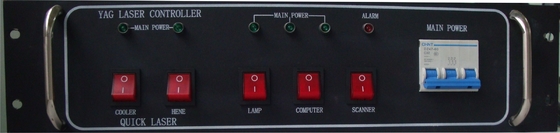

4. Machine's main configurations
|
Model |
ST-DL50 |
|
Galvanometer(Scanner) |
SGS |
|
AO Q-SWITH |
U.K- Gooch Housego |
|
Laser crystal |
Original:∮3 |
|

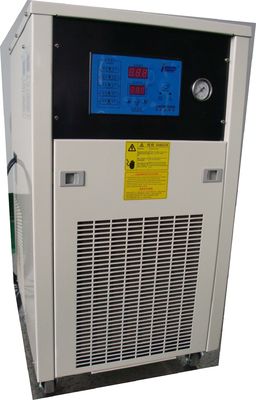

Cooling system |
SUNRISE,Temperature distinguish rate ±0.1° |
|
Expander lens |
Germany |
|
Reflect lens |
Germany |
|

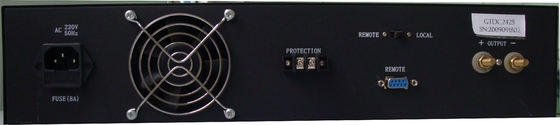

Q-Switch power supply |
STARS |
|
Computer |
special industrial PC, Color LCD. |
|
Software |
JCZ |
|
AD/DA |
JCZ |
|

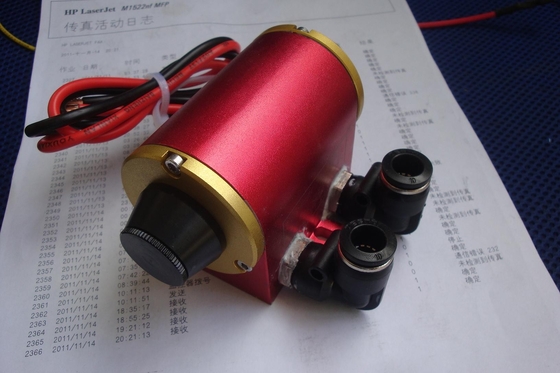

Laser source ( optical key parts ) |
American |
|
Power of laser |
50W |
5. Application and the main materials
Our diode laser marker can mark all metal surfaces and many non-metal materials. suitable for applications that requires high precision and accuracy in depth markings.
Widely used in electrical components, integrated chips, electric appliance, communication equipments. tools, precision machinery, glass frames, ABS ,plastic. clocks and watches, accessories, automotive accessories, plastic buttons, construction material, packaging. pvc pipes and medical instrument processing and manufacturing.
6. The laser marking samples of this kinds of diode laser marker
