| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Metal Laser Engraving Machine | Laser Type: | Fiber Laser |
|---|---|---|---|
| Cooling Mode: | Air Cooling | Laser Power: | 20W 30W 50W |
| Key Selling Points: | Multifunctional | CNC Or Not: | Yes |
| Minimum Character: | 0.01mm | Working Accuracy: | 0.01mm |
| Marking Depth: | 0.01-1.0mm(subject To Mate) | Laser Wavelength: | 1064nm |
| Marking Speed: | 0-7000mm/s | ||
| High Light: | 20w Fiber Laser Engraving Machine,50w Metal Laser Engraving Machine,30W Laser Marking Engraving Machine |
||

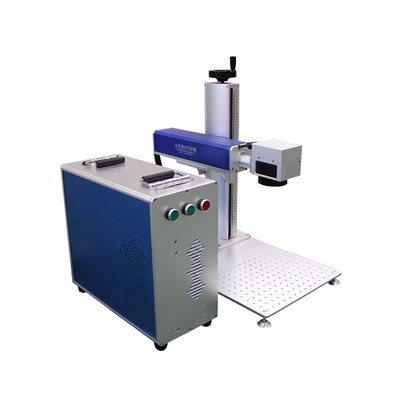

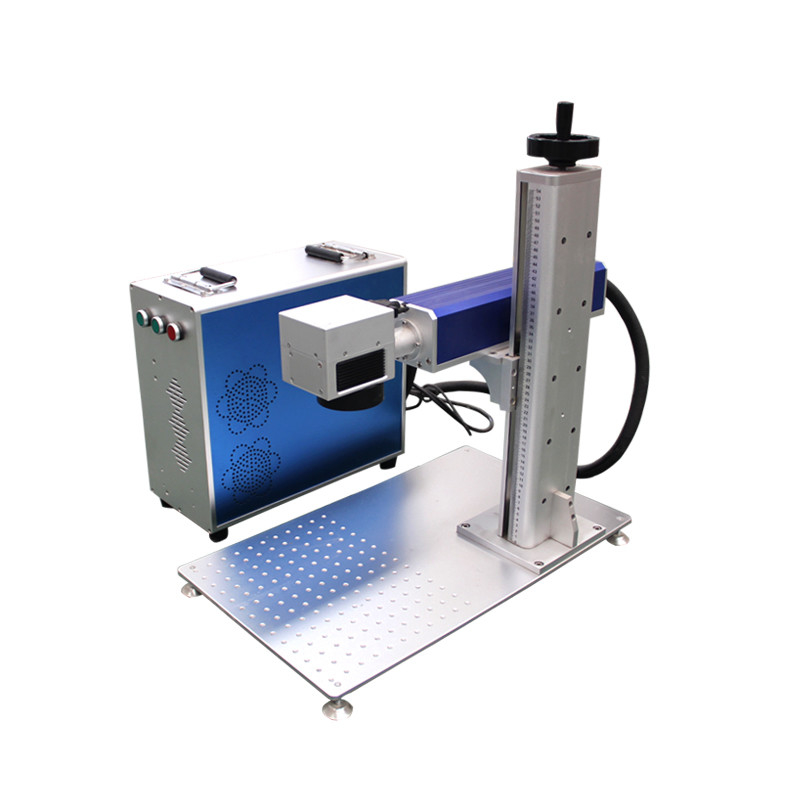

Portable Metal Laser Engraving Machine
Main Features
1) Genuine EzCad software.
2) Raycus Fiber laser source offer 3 years Warranty.
3) High quality laser beam. The diameter of focal spot not over 20μm.
4) High speed marking. Special laser head for High-speed scanning.
5) Low consumption.
6) Long lifetime without maintenance. More than 100000 working life.
7) Small size suit for harsh working environment.
8) Fast processing speed. High precision.
|
Working size of Fiber marking machine
|
110x110mm--200*200mm
|
||
|
Fiber control system
|
Raycus
|
||
|
Laser Head
|
Sino-Galvo SG7110
|
||
|
Fiber power
|
20W(Optional 30W/50W)
|
||
|
cooling way
|
Air cooling
|
||
|
Worktable adjustment range
|
0-450mm
|
||
|
Computer operating system
|
WindowXP/Window7/W8/W10
|
||
|
Support graphical format
|
Support AI,PLT, DXF, BMP,JPG file, etc
|
||
|
Optical wavelength
|
1064nm
|
||
|
Marking speed
|
0-7000mm/s
|
||
|
Marking thickness
|
0-1mm
|
||
|
Minimum line width
|
0.015mm
|
||
|
Minimum character
|
0.01mm
|
||
|
Operating voltage
|
AC220V 10%/50Hz-60Hz, AC110V (optional)
|
||
|
Software
|
EZCAD
|
