| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Fiber CO2 Online Flying Laser Marker | Laser Type: | CO2 Laser |
|---|---|---|---|
| Working Accuracy: | 0.01mm | Application: | Laser Marking |
| Laser Wavelength: | 1064nm | Weight (KG): | 52 KG |
| Key Selling Points: | Easy To Operate | Laser Power: | 20W /30w/ 50w(Optional) |
| Marking Speed: | ≤18000mm/s (according To Different Material) | Applicable Material: | Metal Plastic |
| Marking Area: | 50mm X 50mm~175mm X 175mm Or Other Customized | Core Components: | Pressure Vessel |
| High Light: | Online Flying Laser Marking Machine,Fiber CO2 Laser Marking Machine,50w CO2 Laser Marker |
||

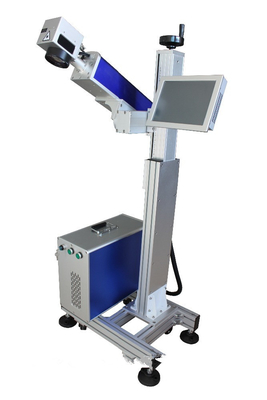

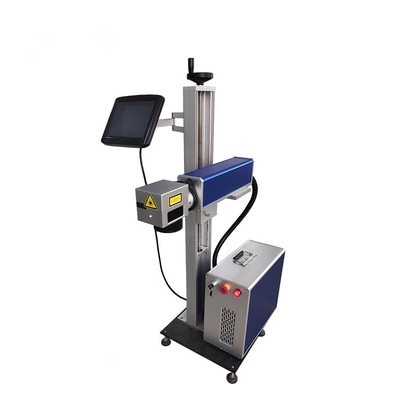

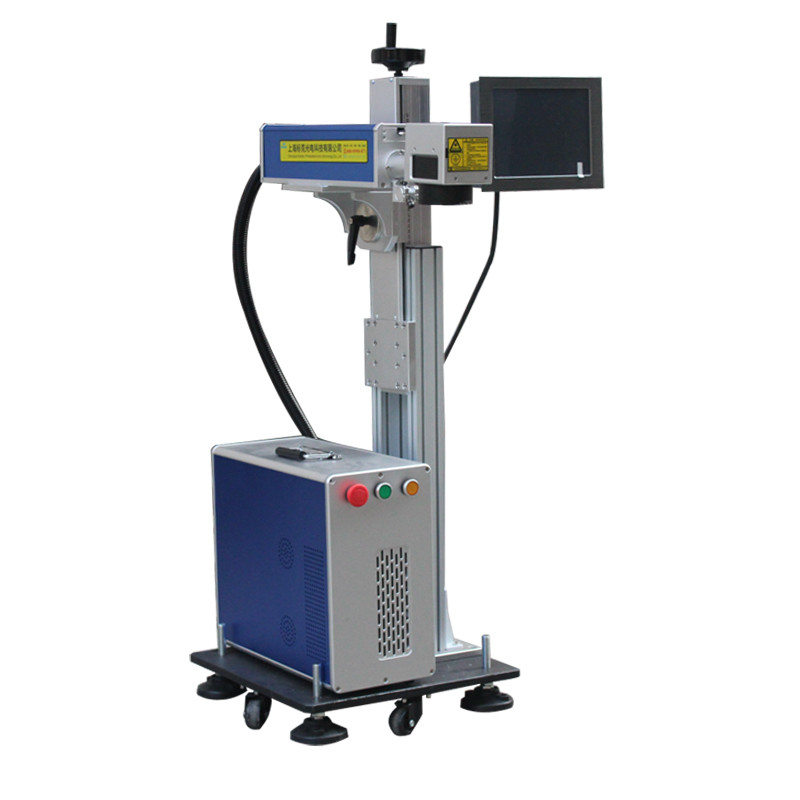

CO2 Online Flying Laser Marking Machine
Product Description
1. Mark on most metal materials and non-metal materials like:PE/PVC/HDPE etc
2. laser life can up to 100000 hours
3. Windows-based marking software. real-time monitoring the laser power and pulse frequency
4. Small size,stable and reliable marking system, free- maintenance
5. Marking contents include text, graphics, pictures, serial numbers, bar codes, or it’s combinations
6. High-performance digital galvanometer scanning system,perform high-speed and high-precision
7. It is in line with international safety and operating standards
Features
1. The machine takes CO2 glass laser tube as the light source. By 2D fast-speed scanning lens swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realize marking and graph processing.
2. The CO2 laser marking machine has the longest application time and the most extensive usage areas and is the most mature technology at present.
3. By using fast-speed scan lens, it can scan the graph in shortest time finish fine marking process.
4. It can configure auto clamp and baiting production line as user’ s requirements.
5. It can mark data, series number bar code automatically.
6. It is available for data communications, networking.
|
Laser Type |
CO2 laser |
|
Laser Wavelength |
10.6 μm |
|
Laser Power |
10W/30W/60W/100W |
|
Cooling Method |
Air cooling |
|
Power Consumption |
500W~1000W(220VAC,50HZ) |
|
Marking Focal Length |
100mm~190mm |
|
Positioning Accuracy |
0.01mm |
|
Min Line Width |
0.1mm |
|
Marking Area |
50mm X 50mm~175mm X 175mm or other customized |
|
Assembly Line Speed Support |
0~189m/min |
|
Marking Speed |
≤18000mm/s (according to different material) |
|
Character Size |
Adjustable in Marking Range |
|
Marking Line number |
Adjustable in Marking range |
|
Marking Content |
Chinese and English Character/Numbers/Graphics/Date and Time/Serial Number, etc |
|
Marking Font |
All kinds of standard CAD geometric font, also can be user-defined extended. |
|
Laser source |
US Synrad |
|
Galvanometer scanner |
German Scanlab/US CTI |
