UV Fly Laser Marking Machine

Product Details:

Place of Origin:	CHINA
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	5-7 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	200-500 Sets/Month

Contact Now

Detailed Product Description

Name:	Fly UV Laser Marking Machine	Laser Type:	UV Laser
Application:	Laser Marking	Key Selling Points:	Easy To Operate
Laser Power:	3W 5W 10W	Marking Speed:	8000mm/s
Applicable Material:	Metal And Nonmetal Materials	Marking Area:	75x75--300x300mm
Laser Wavelength:	355nm	Working Accuracy:	0.002mm
Cooling Mode:	Air Cooling	Marking Depth:	0-0.2mm
High Light:	3W UV Laser Marking Machine , 10W flying laser marking machine , 8000mm/s UV Laser Marker

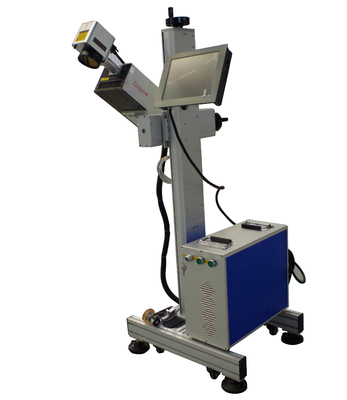

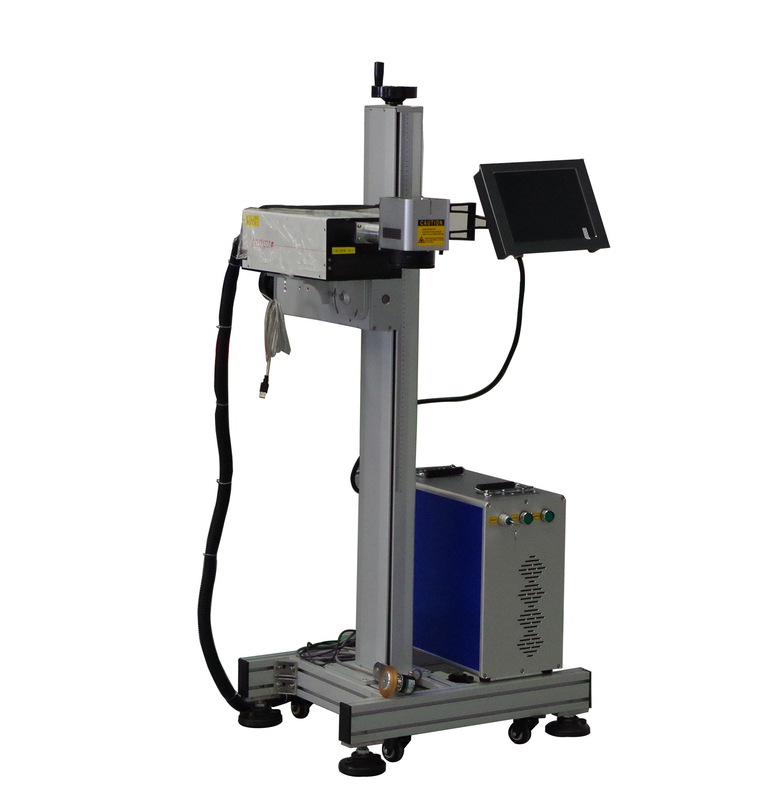

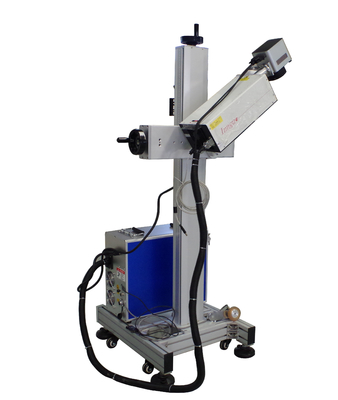

UV Fly Laser Marking Machine

Product Description

The UV Fly Laser Marking Machine can make high contrast markings on sensitive products. Fly UV colours the surface of the product with a photochemical process; the heat produced by the marking is so limited that it does not damage even the most sensitive materials: from cables for aeronautics and transparent or coloured hoses to medical plastics for invasive procedures and antifire plastics for housing electronic or glass components.

Machine parameters

Product name	UV Fly Laser Marking Machine
Laser Wavelength	355nm
Laser Output Power	3w/5w/10w
Repeat frequency	30KHZ--150KHZ
Average power stability	<±3% over 24 over hourse
Single pulse stability	<3%rms
Working Area	75x75mm--300x300mm
Beam Quality	M2<1.2
Repeatability	0.01mm
Positioning accuracy	0.01mm
Min.character	0.15mm
Marking Depth	0-0.2mm
Control	EZCAD
Cooling	Air cooling
Power supply	AC220V/(50 or 60Hz),110V/60Hz
USB 2.0 Compatible	yes
File Types	PLT, DXF, AI, DST, BMP, JPG, TIF, etc.
Warranty	Laser source 3 years, Other machine parts 2 years
