| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Stainless Steel Laser Marking Machine | Laser Type: | Fiber Laser |
|---|---|---|---|
| CNC Or Not: | Yes | Cooling Mode: | Air Cooling |
| Laser Wavelength: | 1064nm | Applicable Material: | Metal / Plastic |
| Weight (KG): | 150 KG | Marking Depth: | <2mm(depending On The Material) |
| Lifting Range: | 50cm | Marking Area: | 110*110mm/200mm*200mm/300*300mm |
| Dimension(L*W*H): | 1020*700*600mm | Min Letter: | 0.15mm |
| High Light: | Optical Fiber Laser Marking Machine,1064nm Portable Laser Marking Machine,50w Portable Laser Marking Machine |
||

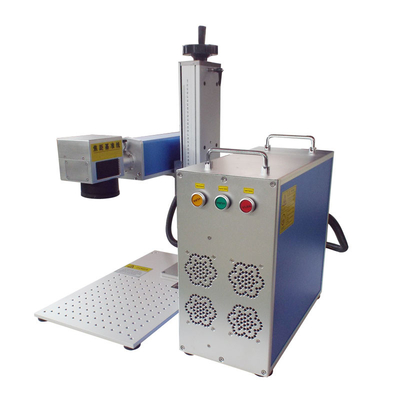

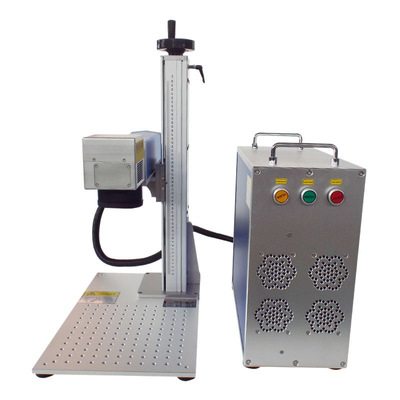

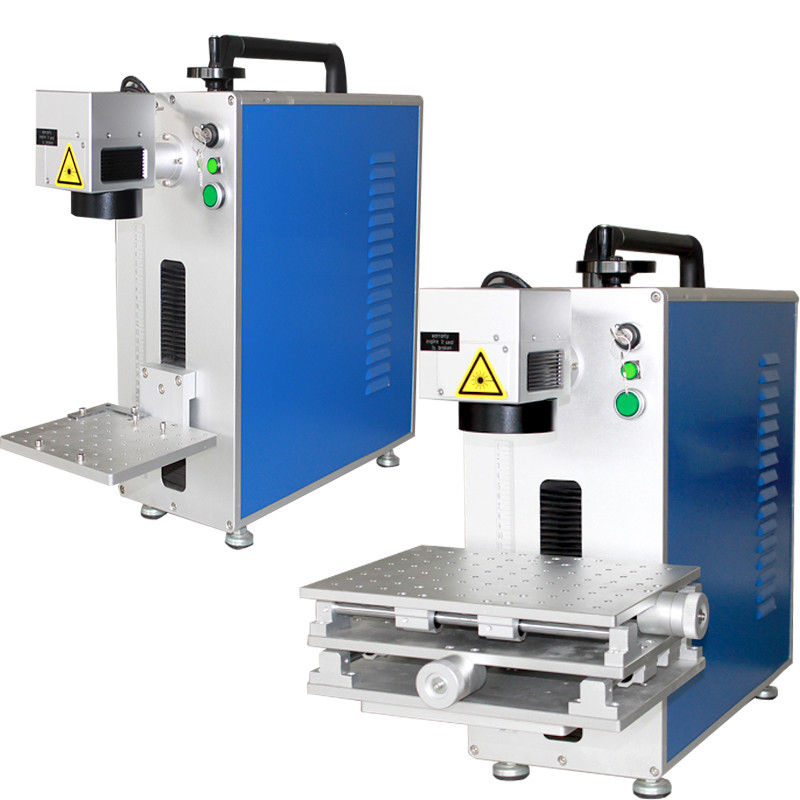

20w 30w 50w Raycus Optical Fiber Laser Marking Machine
1. Raycus / Max China best brand laser source
2. High contrast / Edge neat / Smooth surface / Not affected by heat
3. Warranty for 2years
4. Rotary supported
5. 100000 hours long lifetime / No consumables / Free of maintenance
|
Laser Power |
10W/20w/30W/50w |
|
Laser Wavelength |
1064nm |
|
Marking Area |
110*110mm/200mm*200mm/300*300mm |
|
Lifting range |
50cm |
|
Laser source brand |
Max/Raycus |
|
Laser source lifetime |
≥100,000 hours |
|
Marking Line Width |
0.01-0.1mm |
|
Marking depth |
<2mm(depending on the material) |
|
Max Marking Speed |
7000mm/s |
|
Repeatable Accuracy |
0.001mm |
|
Min Letter |
0.15mm |
|
Cooling System |
Air Cooling |
|
Modulation Frequence |
20kHz~200kHz |
|
Working Voltage |
AC220V/ AC110V |
|
Unit Power |
<0.5kw |
|
Software |
Ezcad |
|
compatible system |
win7 with 32 bit or 64 bit |
