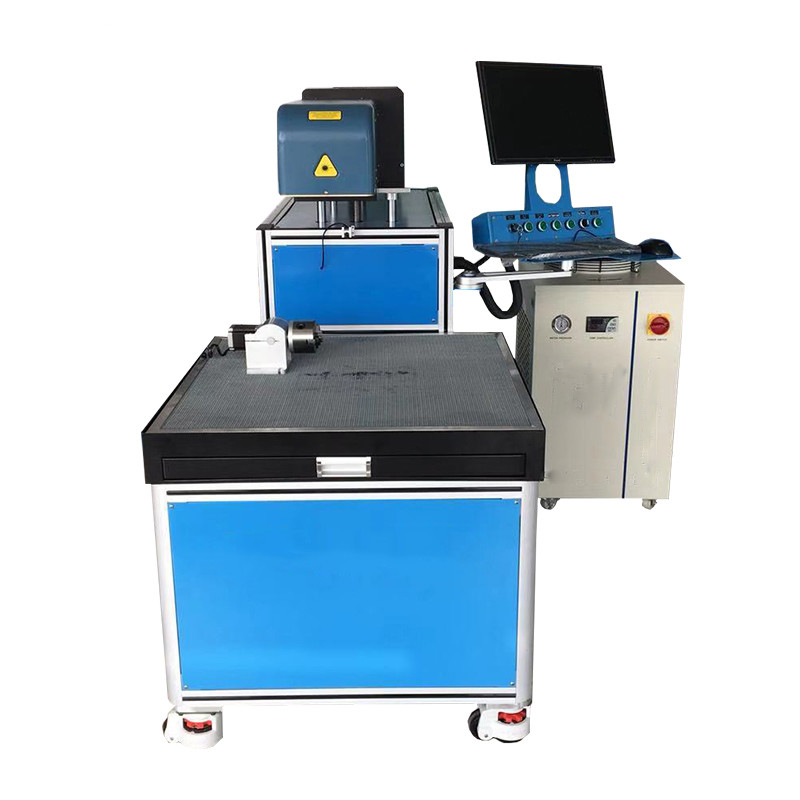

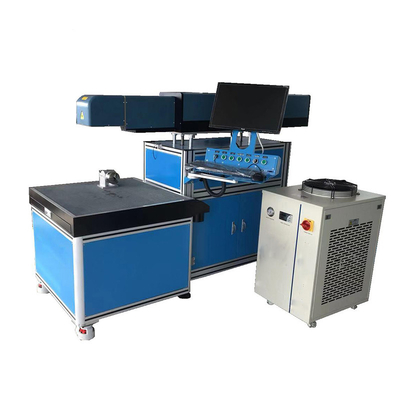

RF Laser Tube CO2 Laser Marking Machine For Non Metal

RF Laser Tube CO2 Laser Marking Machine For Non Metal Materials

Application of our co2 laser marking machine

RF Laser Tube Dynamic Co2 Laser Marking Machine suitable for almost all non-metal materials, including leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastics, marble, jade, crystal, cloth, etc.

Features

1. Unique optical path design based on laser beam characteristics, low optical loss with 20% efficiency increased.

2. Rapid response with high speed THK guide rail of Z axis.

3. High stability with CTI servo motor galvanometer.

4. Original USA coherent CO2 laser tube with long working lifetime,is characterized by large power, high-quality light spot, excellent performance, stable power and long service life(20k hours).

5. Tiny beam spot , making more precision.

6. Full sealed and maintenance-free laser optic system which key components all imported from USA or UK, realizes usage at installation without adjustment.

7. The 3 axis laser scanning system features compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, etc.

8. The heat elimination method of the scanning motor and the drive board has been taken into full consideration during the design of the system, so as to ensure the stability of the system under long-hours working condition.

9. High-precision and high-speed marking/cutting, efficiency is 20% higher than other similar models.

10. This equipment can run more stably and with even longer service life by utilizing water cooling on both the RF laser and extender lens.

11. USB interface bus has been adopted for the control card, which supports offline operation, stepper motor with X, Y, Z and R axis (X, Y and Z axis linked.), support start-up and stopping marking by external control.

12. Rotary worktable system is optional, thus, accomplish marking on cambered surface.

13. Strong graphics drawing and editing functions enable direct marking of color graphic or marking after color convert from RGB to grey scale.

14. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.

15. Industrial computer support Windows 7, XP or 10.

16. Strong anti-jamming ability.

Machine advantages

1. High cut/engrave speed
This series machine adopts advanced US Galvo scanning system. The cutting/engraving speed can reach 7000mm/s. Fulfill the request of factory mass production.

2. Precise process
With US RF metal laser tube, this machine has finest laser beam, to cut and engrave very precisely. Especially when you cut paper card, the cutting edge is very smooth and thin.

3. Forever lasting marking
Laser is non contact process, there is no distortion. As laser marking is to gasify the surface of material, the marking will laser forever.

4. Flexible process
You just need to change design in software, then all different size/shape pattern can be realized. It is very convenient for sampling or changing products. No need cost for template.

5. Easy operation

Adopting integrated structure with Auto focusing technology and humanized operation design. Making the laser marking as easy as printing.

6. Minimal owner ship cost

No need any maintenance, long life, small volume, suits for working in atrocious working conditions.

7 Wide application

3D Dynamic machine can mark, engrave, cut, hollow on almost all non-metal material, like wood, acrylic, plastic, marble, paper, glass, leather, textile, bamboo, PVC, rubber and so on.

It is widely applied in industry like electronic, machinery, garments, artwork, gifts, greeting card, packing, advertisement ect.

It can process with any pattern, signs, bar code, letters, serial number as request.
