| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Portable CO2 Laser Marking Machine | Laser Type: | CO2 |
|---|---|---|---|
| Working Accuracy: | 0.01mm | Key Selling Points: | High Accuracy |
| Power: | 30W/50W/100W | CNC Or Not: | Yes |
| Marking Depth: | ≤3mm/≤5mm/≤8mm | Cooling Mode: | Water Cooling |
| Min. Character: | ≤0.8mm | Marking Speed: | ≤7000mm/s |
| Optional Working Area: | 0-400mm | Repeat Accuracy: | ±0.002mm |
| High Light: | Portable CO2 Laser Marking Machine,100w Laser Marking Machine,50w Portable Laser Marking Machine |
||

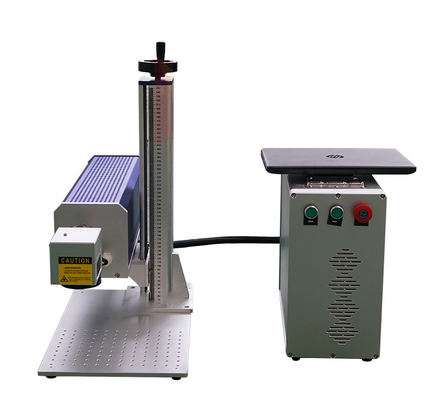

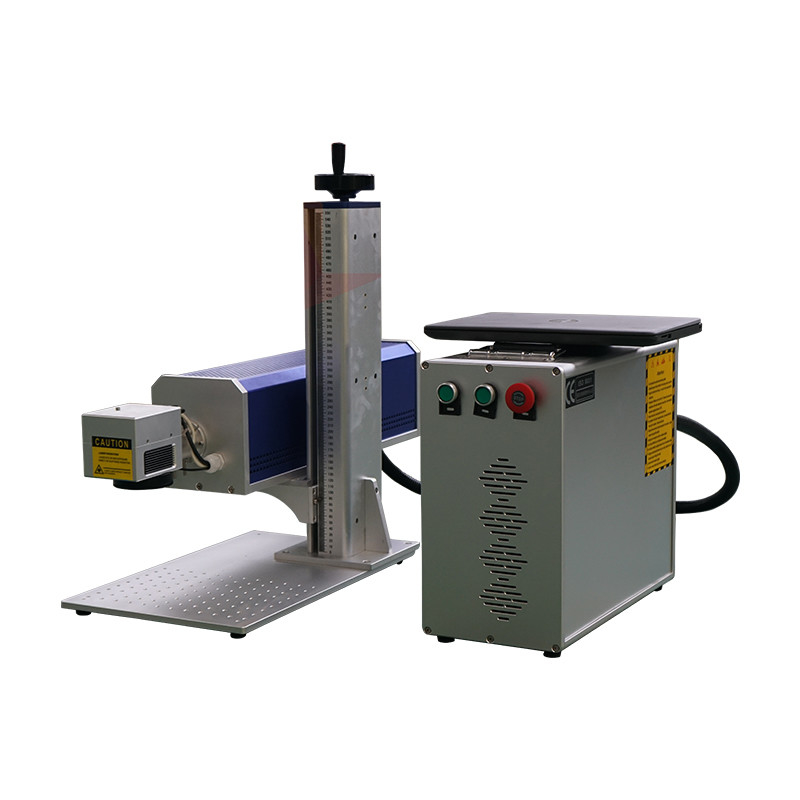

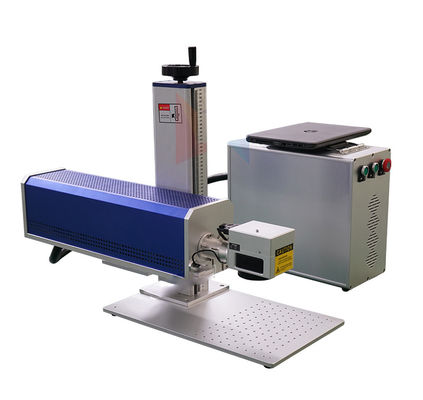

High Accuracy 30w 50w 100w CO2 Portable Laser Marking Machine
Technology Parameter:
|
Model |
Laser Power |
Processing Area |
|
LXC-DF60 |
Glass Laser Tube 60W |
175*175MM |
|
LXC-DF80 |
Glass Laser Tube 80W |
175*175MM |
|
LXC-DF100 |
Glass Laser Tube 100W |
200*200MM |
|
LXC-RF10 |
RF Laser Tube 10W |
110X110MM |
|
LXC-RF30 |
RF Laser Tube 30W |
200*200MM |
|
LXC-RF60 |
RF Laser Tube 60W |
200*200MM |
|
LXC-RF100 |
RF Laser Tube 100W |
300*300MM |
|
DF = Chinese Glass Sealed Co2 Laser Tube RF = USA or Chinese Metal Sealed RF Co2 Laser Tube Customized Specification is Available |
|
Laser Type: CO2 |
Power: 30W/50W/100W |
|
Laser Wave Length: 10.6um |
Optional Working Area: 0-400mm |
|
Marking Speed: ≤7000mm/s |
Min. Linear Width: 0.15mm |
|
Marking Depth: ≤3mm/≤5mm/≤8mm |
Repeat Frequency: ≤100KHz |
|
Min. Character: ≤0.8mm |
Repeat Accuracy: ±0.002mm |
|
Power Supply: AC 220V 50KHz 20A |
Cooling: Water Cooling |
Application:
co2 laser marking machine applicable for so many materials like bamboo, coconut shell, paper, plexiglass, PCB board, acrylic, rubber, marble, granite, jade, crystal, leather, fabric and so on the vast majority of non-metallic materials. It was used in craft gifts, advertising decoration, toys, electronic appliances, clothing, medicine, food, paper products and other industries.
