| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Fiber Laser Marking Machine For Metal | Laser Power: | 10W/20W/30W/50W/100W |
|---|---|---|---|
| Marking Area: | 110mm*110mm | Marking Speed: | 7000mm/s-12000mm/s |
| Laser Type: | Fiber Laser | Working Accuracy: | 0.01mm |
| CNC Or Not: | Yes | Cooling Mode: | Air Cooling/Water Cooling |
| Key Selling Points: | High Productivity | Laser Wavelength: | 1064nm |
| Laser Source: | Raycus | Voltage: | 110V/220V |
| Marking Area: | 110mm*110mm-500mm*500mm | ||
| High Light: | 3D Fiber Laser Marker Machine,Raycus Fiber Laser Marker Machine,1064nm Laser Metal Marking Machine |
||

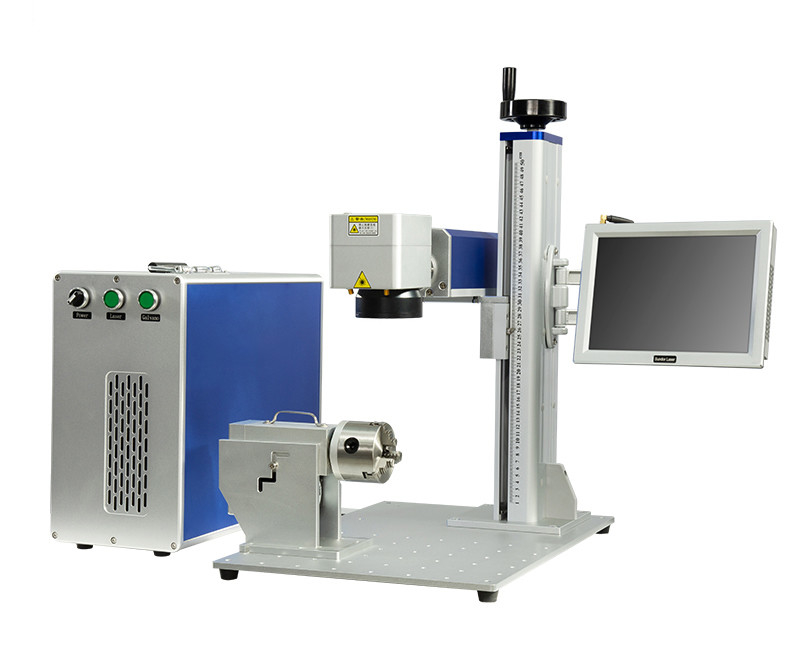

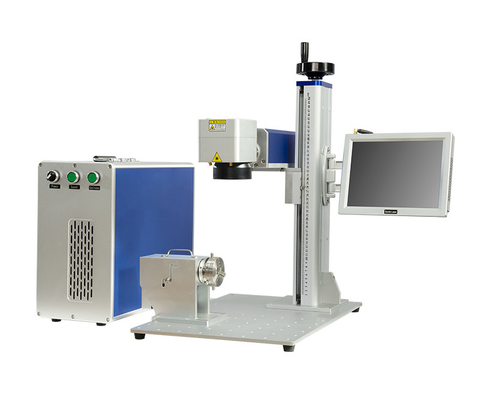

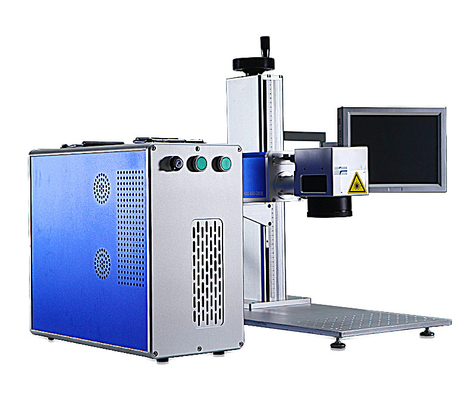

3D Dynamic Raycus Fiber Laser Marker Machine For Metal
| Model | YLH-E |
| Laser source | IPG/Raycus/JPT |
| Laser power | 20W 30W 50W 100W Optical |
| Weave length | 1064nm |
| Marking area | 110*110mm,175*175mm,220*220mm,300*300mm,500*500mm |
| Laser repetition frequency | 20KHZ-80KHZ |
| Beam quality | M²:1.5 |
| Marking speed | 7000-12000mm/s |
| Marking depth | 0.01-1mm |
| Repetition Precision | 0.01mm |
| Minimum Line Width | 0.017mm |
| Minimum Character | 0.2 mm |
| Cooling Style | Air cooling |
| Positioning Way | Red light |
| Control software | JCZ EZCAD 2.12 Professional fiber laser marking software |
| Supported Format | PLT, DXF, DST, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF,CAD, CDR, DWG and ETC |
| Control board | JCZ |
| Operating Voltage | AC220V/50HZ/2A |
| Gross Power | ≤500W |
| Supported Windows | Windows XP,7,8,10 |
| Certificate | ISO, CE, FDA |
| Material can be processed | all metal material and part of non-metal material,such as hard plastic |
| Others | USB cable for connection, Flash drive with software and English manuals. |
| After-sales Service | Warranty for 3 years. |
| Packaging | Wooden box |
| Packaging Dimension | 65*51*80Cm |
| Gross weight | 70kg |
Application
It is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products, etc.
--Electrical Engineering and Electrical part and component
--Mobile (Cover,battery,keyboard, I Phone Case)
--Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
--Building materials,PVC pipe
--Car motor car spare part ,Insturment and meters and cutting tool
--plastic case,aviation and aerospace,
--military product,hardware fitting and accessory,sanitary appliance
--food and beverage ,Medicine package and medical instrument,solar Pv industry
