| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Industrial Laser Marking Machine | Laser Power: | 20W 30W 50W 60W 100W |
|---|---|---|---|
| Marking Area: | 75*75mm 110*110mm 150mm*150mm 175mm*175mm 200*200mm 300*300mm | Laser Type: | Fiber Laser |
| CNC Or Not: | Yes | Cooling Mode: | Air Cooling |
| Key Selling Points: | Easy To Operate | Laser Wavelength: | 1064nm |
| Applicable Material: | Metal Plastic | Weight (KG): | 68 KG |
| High Light: | 20w fiber laser marking machine,Optical Fiber Laser Marking Machine,30W Industrial Laser Marking Equipment |
||

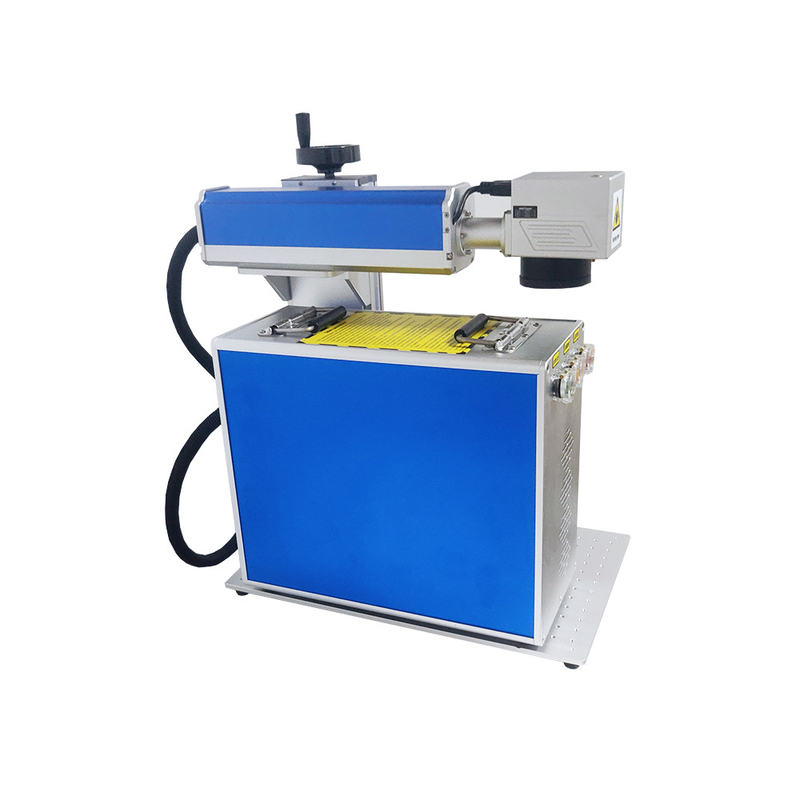

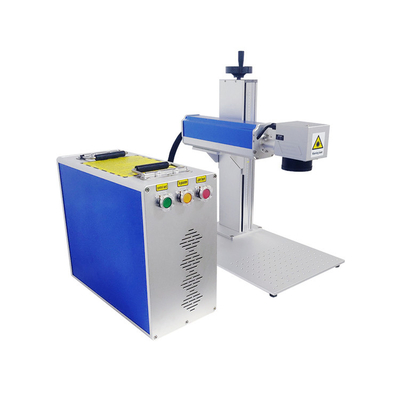

20W 30W 50W 60W 100W Optical Fiber Laser Marking Machine
Product Description
|
Laser Type
|
Fiber laser
|
|
Laser Power
|
20W 30W 50W 60W 100W
|
|
Model
|
CN-20W/30W/50W/60W/100W
|
|
Laser Wavelength
|
1064nm
|
|
Marking Area
|
75*75mm 110*110mm 150mm*150mm 175mm*175mm 200*200mm 300*300mm
|
|
Marking Depth
|
≤1.2mm
|
|
Marking Speed
|
10000mm/s
|
|
Minimum Line Width
|
0.012mm
|
|
Minimum Character
|
0.15mm
|
|
Repeated Precision
|
±0.003mm
|
|
Life-span of Fiber Laser Module
|
100 000hours
|
|
Beam Quality
|
M2 <1.5
|
|
Focus Spot Diameter
|
<0.01mm
|
|
Output Power of Laser
|
10%~100% continuously to be adjusted
|
|
System Operation Environment
|
Windows XP /7/8/10 32/64bits
|
|
Temperature of Operation Environment
|
15℃~35℃
|
|
Power Input
|
220/110v single phase
|
|
Power Requirement
|
<400W
|
|
Communication Interface
|
USB
|
|
Machine Dimension/after package
|
760*680*770mm
|
|
Optional
|
Rotary Device, Moving Table, other customized Automation
|
Industry Application
Portable Fiber Laser Marker Machine was specially developed for industrial marking. The robust design with maintenance-free laser source guarantees constantly precise marking on the workpiece.
Applicable Materials
Metals and alloys (iron, copper, aluminum, magnesium, zinc and all other metals),plastics,rare metals and alloys (gold, silver,titanium), metal oxides (metal oxide may be), special surface treatment (Phosphatize, aluminum anodizing, electroplating the surface), ABS material (electrical appliances shell, daily necessities), ink (translucent keys, print products), epoxy resin (electronic components, packaging, insulation layer).etc.
