| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | 20w Smart Fiber Laser Marker Machine | Laser Power: | 20W(Optional) |
|---|---|---|---|
| Marking Area: | 110mm*110mm | Laser Type: | Fiber Laser |
| Working Accuracy: | 50μm | CNC Or Not: | No |
| Cooling Mode: | Air Cooling | Key Selling Points: | Smart ,mini |
| Laser Wavelength: | 1064nm | Laser Source: | Max/JPT/Raycus |
| Voltage: | 110/220V ± 10% /,50/60HZ | Marking Area: | 200*200mm 300*300mm |
| Applicable Material: | Metal Materials | Weight (KG): | 28 KG |
| High Light: | Portable Fiber Laser Marking Machine,20W Fiber Laser Marking Machine,1064nm Fiber Laser Marker Machine |
||

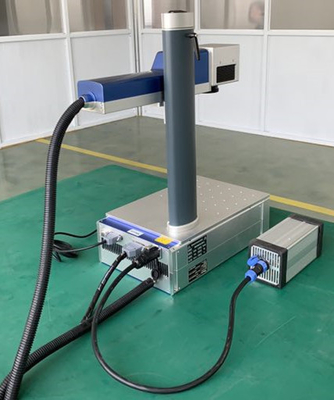

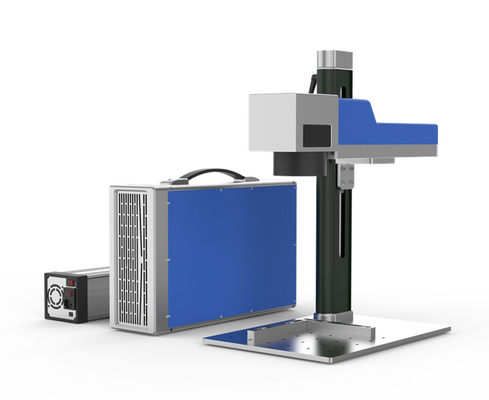

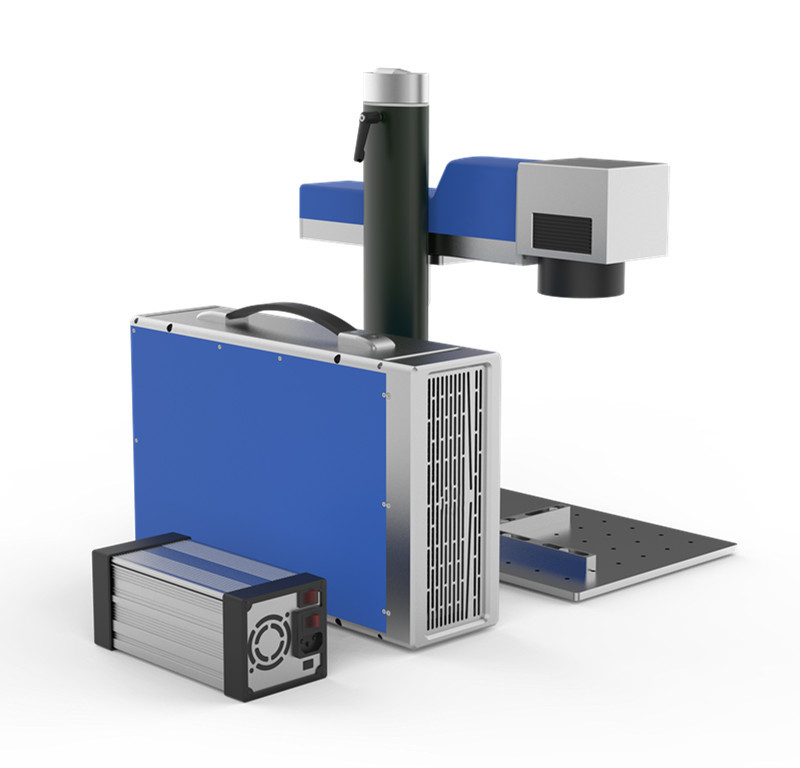

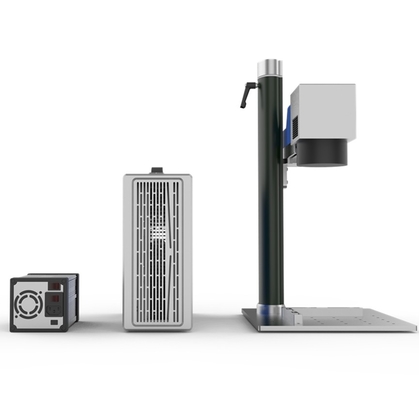

Raycus 20W Smart Mini Portable Fiber Laser Marking Machine
|
Laser type |
Raycus |
|
Laser power |
10W/20W/30W/50W (optional) |
|
Supports graphical format |
PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF |
|
Beam quality |
m2 <2 |
|
Power stability |
(8h) <± 1% rms |
|
Pulse repetition frequency |
20-2KHz |
|
Power consumed |
<800W |
|
Minimum line width |
50μm |
|
Minimum character |
0.3mm |
|
Laser Wavelength |
1064nm |
|
Galvanometer Size |
100*100mm/200*200mm/250X250mm/300x300mm (optional) |
|
Cooling way |
Air cooling |
|
Operating voltage |
110/220V ± 10% /,50/60HZ |
|
Ambient operating temperature |
15 ° C - 35 ° C |
|
Weight |
40KG |
|
Dimensions |
760*210*570 (mm) |
|
Packing |
plywood wooden packaging |
Application
It is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products, etc.
--Electrical Engineering and Electrical part and component
--Mobile (Cover,battery,keyboard, I Phone Case)
--Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft
--Building materials,PVC pipe
--Car motor car spare part ,Insturment and meters and cutting tool
--plastic case,aviation and aerospace,
--military product,hardware fitting and accessory,sanitary appliance
--food and beverage ,Medicine package and medical instrument,solar Pv industry
