| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Portable Handheld Laser Marking Machine | Laser Type: | Fiber Laser |
|---|---|---|---|
| Cooling Mode: | Air Cooling | Working Accuracy: | 0.001mm |
| CNC Or Not: | Yes | Applicable Industries: | Food & Beverage Factory, Construction Works |
| Laser Wavelength: | 1064nm | Application: | Laser Marking |
| Key Selling Points: | High-accuracy | Marking Area: | 150mm*150mm |
| Optional Marking Area: | 100mm*100mm / 150mm*150mm/200mm*200mm / 300mm*300mm | Minimum Line Width: | 0.012mm |
| Minimum Character: | 0.15mm | ||
| High Light: | Handheld 50w Laser Marking Machine,50w Portable Laser Marker,1064nm Handheld Marking Machine |
||

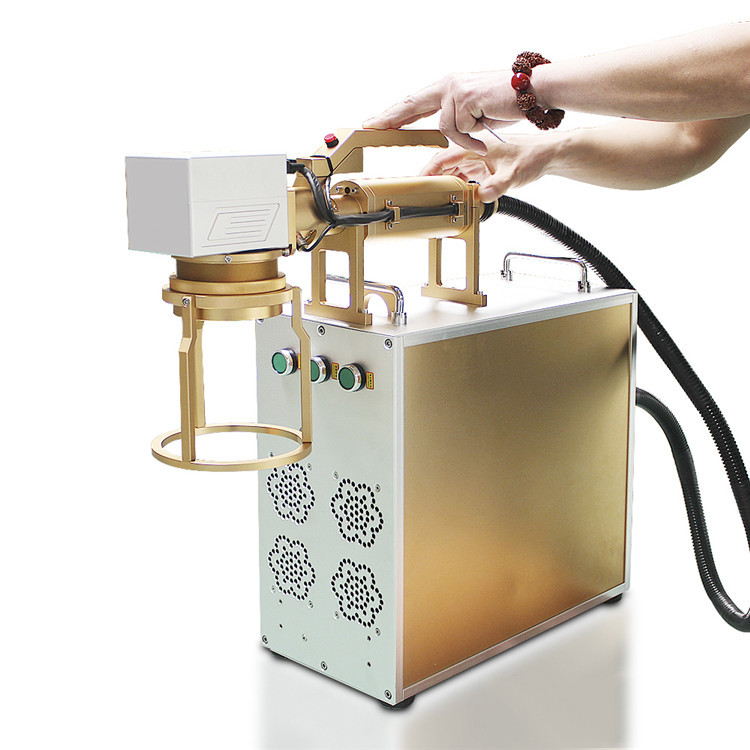

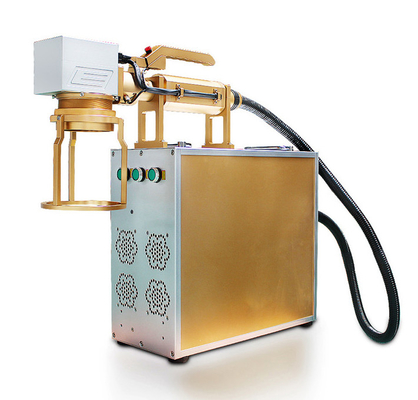

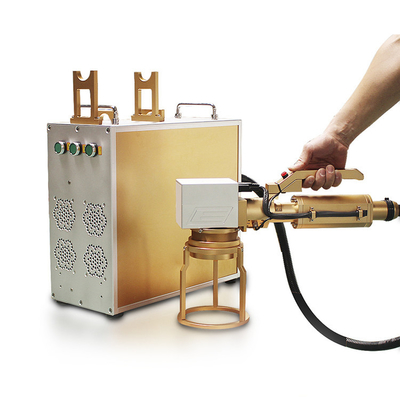

50w Portable Handheld Laser Marking Machine For Metal
Features
1. Fast marking speed, high marking precision
2. Professional and powful control systerm
3. Pulse fiber laser source, long lifetime 100,000 hours.
|
Type |
FST-20/30/50 |
|
Power |
20W/30W/50W |
|
Laser Wavelength |
1064nm |
|
Marking Area |
150mm*150mm |
|
Optional Marking Area |
100mm*100mm / 150mm*150mm/200mm*200mm / 300mm*300mm |
|
Marking Depth |
≤1.2mm |
|
Marking Speed |
800 standard characters/second |
|
Minimum Line Width |
0.012mm |
|
Minimum Character |
0.15mm |
|
Repeated Precision |
±0.003mm |
|
Life-span of Fiber Laser Module |
100 000hours |
|
Beam Quality |
M2 <1.5 |
|
Focus Spot Diameter |
<0.01mm |
|
Output Power of Laser |
10%~100% continuously to be adjusted |
|
System Operation Environment |
Windows XP / W7--32/64bits / W8--32/64bits |
|
Cooling Mode |
Air cooling--Built-in |
|
Temperature of Operation Environment |
15℃~35℃ |
|
Power Input |
220V / 50HZ / single phase or 110V / 60HZ / single phase |
|
Power Requirement |
<400W |
|
Communication Interface |
USB |
|
Machine Dimension/after package |
650mm*210mm*550mm/880*420*700mm |
|
Net Weight/gross weight |
30KG/53kgs |
|
Optional (Not free of charge) |
Rotary Device, Moving Table, other customized Automation |
