| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Fiber Laser Marking Machine 30w | Laser Type: | Fiber Laser |
|---|---|---|---|
| Cooling Mode: | Air Cooling | Working Accuracy: | 0.001mm |
| CNC Or Not: | Yes | Laser Wavelength: | 10.64um |
| Application: | Laser Marking | Laser Power: | 30W Optional |
| Applicable Material: | Metal Plastic | Marking Depth: | 0 ~0.5mm |
| Marking Speed: | 0-7000mm/s | Laser Source: | Raycus Laser Source |
| High Light: | Handheld Raycus Laser Marking Machine,30 watt fiber laser marking machine,10.64um Handheld Laser Marker |
||

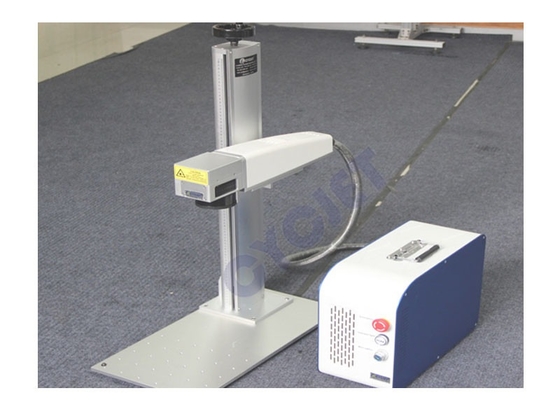

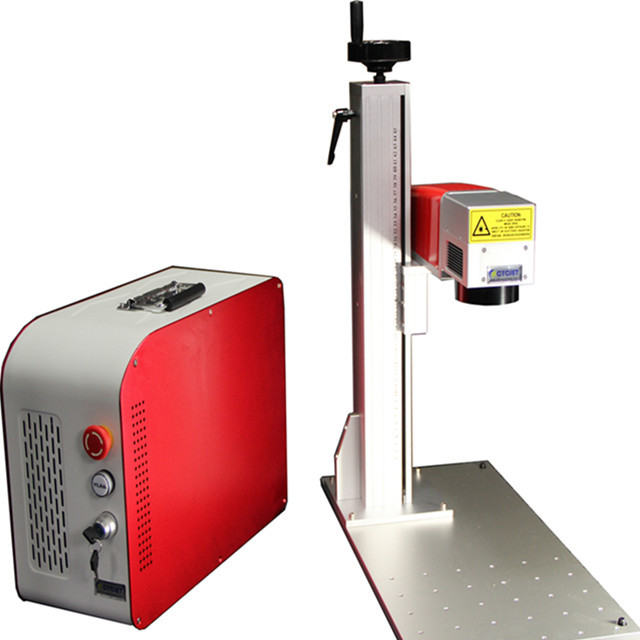

High Speed Hand Held Fiber Laser Marking Machine For Metal
Main Features
1. High speed with galvanometer.
2. Small volume, light weight.
3. Low power, consumption power is less than 500w.
4. Completely air cooling, low energy.
5. No influence of the severe environment and temperature change. If no power, battery and car cigarette lighter can be used for working.
6. Greatly reduce the depreciation cost, satisfying customers' stable large quantities producing.
Technical Parameter
|
Model |
LF30 |
|
Laser Power |
10W/20W/30W/50W |
|
Laser Wavelength |
1064nm |
|
Q-frequency |
20KHz~100KHz |
|
Divergence |
0.3mard |
|
Marking Range |
100*100mm/200*200mm/300*300mm |
|
Minimum Line Width |
0.02mm |
|
Minimum Character |
0.15mm |
|
Marking Depth |
0 ~0.5mm |
|
Engraving Line Speed |
≤10000mm/s |
|
Repeatability Accuracy |
±0.001mm |
|
Beam Quality |
M2:1.2~1.8 |
|
Marking Format |
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date, Batch number, Serial number, Frequency, etc. |
|
Graphic Format Supported |
bmp, jpg, gif, tga, png, tif, ai, dxf, dst, plt, etc. |
|
Working Voltage |
100V-240V 50-60Hz/4A |
|
Unit Power |
<500W |
|
Use of the Environment |
Clean and Dust Free or Dust less |
|
Working Condition: Humidity |
5%-75%, Free of Condensed Water |
|
Laser Module Life |
>100000 hours |
|
Control System |
Windows (10inch touch screen) |
Application

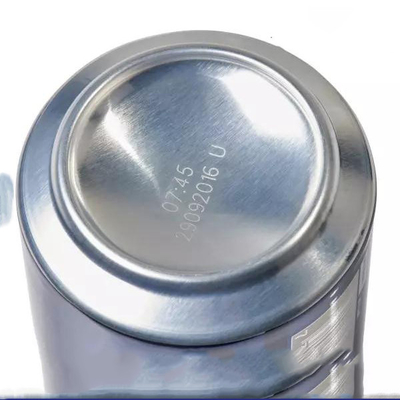

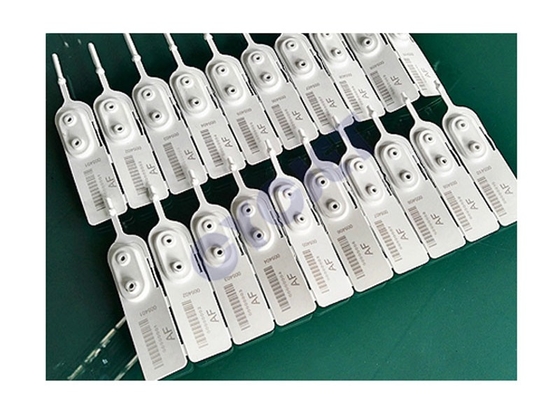

Handheld Laser Marking Machine is widely used to mark on various plastic buttons and electric devices, to mark code on CMOS chip, color paper and food package. It can also be used in the scope with high requirements, such as clock, jewelry, module, bitmap marking etc.
