| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | 20 Watt Fiber Laser Marking Machine | Laser Type: | Fiber Laser |
|---|---|---|---|
| Cooling Mode: | Air Cooling | Working Accuracy: | High Precision |
| CNC Or Not: | Yes | Laser Wavelength: | 10.64um |
| Application: | Laser Marking | Laser Power: | 20watt 30watt 50watt |
| Applicable Material: | Metal Plastic | Marking Depth: | 0.01-0.5mm |
| Marking Speed: | 0-7000mm/s | ||
| High Light: | 50W Handheld Laser Marker,30w Portable Metal Marking Machine,20W Handheld Marking Machine |
||

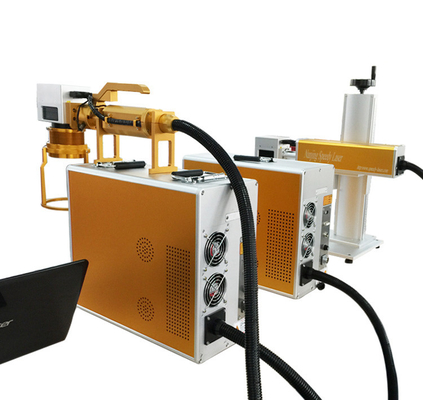

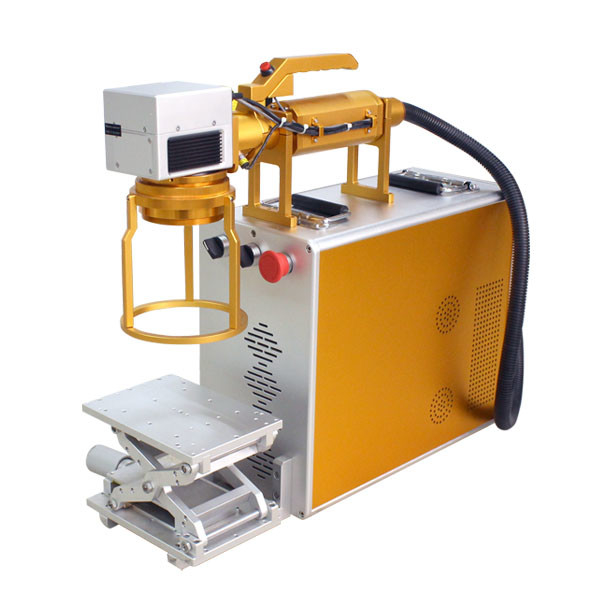

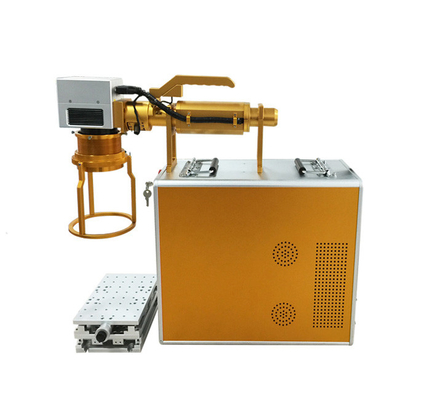

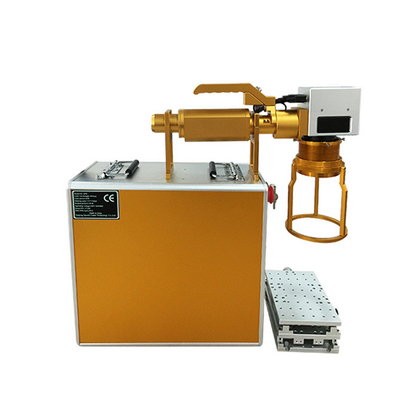

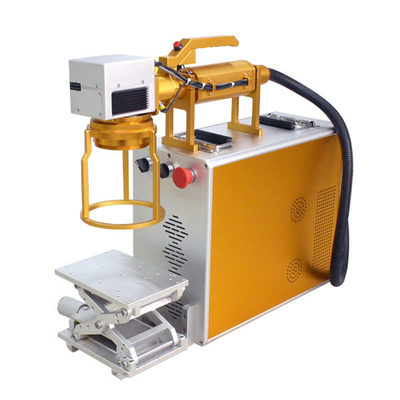

Mini Smart Metal Portable Handheld Laser Marking Machine
Technical Parameter
|
Item Name |
Technical Parameters |
|||
|
Model |
SL-FH 20W |
SL-FH 30W |
SL-FH 50W |
|
|
Laser power |
20W |
30W |
50W |
|
|
Laser wavelength |
1064nm |
|||
|
Laser type |
Raycus /JPT fiber laser / Germany IPG fiber laser |
|||
|
Beam diameter |
7mm±1 |
|||
|
Repeat frequency |
20KHz-80KHz |
50KHz-100KHz |
||
|
Pulse width |
131ns |
135ns |
||
|
Marking depth |
0.01-0.5mm |
|||
|
Marking area |
110×110mm/175×175/200×200mm |
|||
|
Power consumption |
500W |
800W |
1.2 KW |
|
|
Operating voltage |
110V- 240V/50-60 Hz/15A |
|||
|
Cooling |
Air Cooling |
|||
|
Packing size |
80*36*85 cm (L*W*H) |
|||
|
Gross weight |
50 KG |
|||
|
Package |
Standard export wooden case |
|||
Applicable Industries
Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Applicable Materials
Metals (including rare metals), engineering plastics, electroplating materials, coating materials, coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials.
