| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Laser Marking Machine For Plastic | Laser Type: | UV Laser |
|---|---|---|---|
| Working Accuracy: | 0.01mm | Application: | Laser Marking |
| Wavelength: | 355nm | Weight (KG): | 130 KG |
| Key Selling Points: | High Safety Level | Laser Power: | 3W/5 W/10W |
| Marking Speed: | MAX 15000mm/S | Applicable Material: | Metal Nonmetal Materials |
| Marking Area: | 110*110mm/ 200*200mm/300*300mm | Power Supply: | 110V/220V |
| Core Components: | Laser Source | Cooling Mode: | Water Cooling |
| High Light: | 3W UV Laser Marking Machine,10W Desktop laser marking machine,5W Desktop Laser Marker |
||

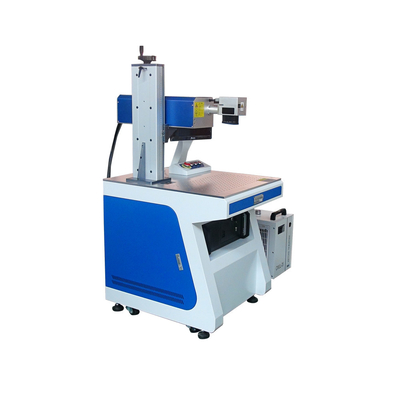

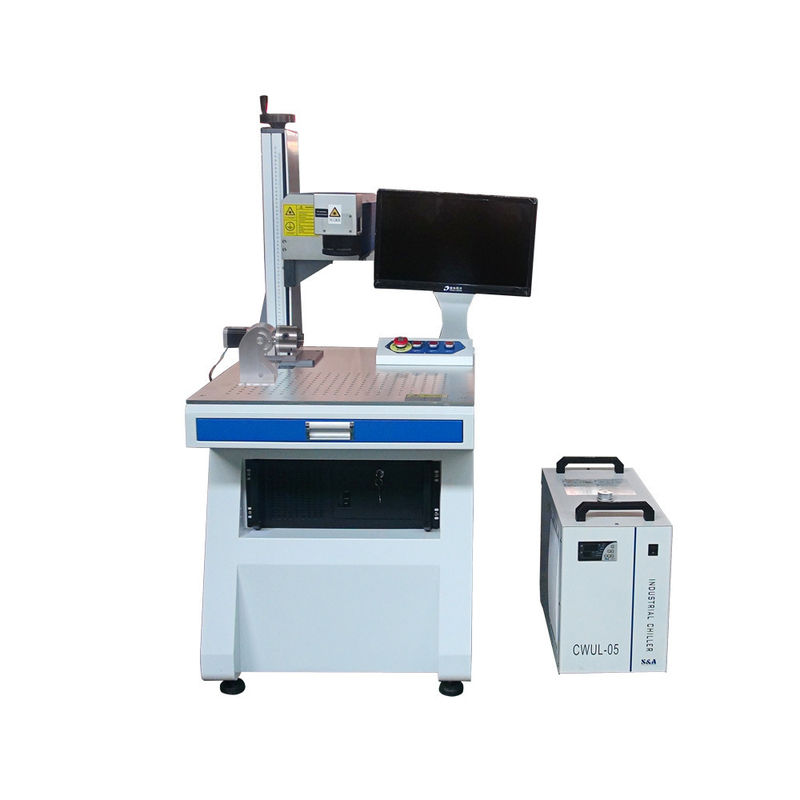

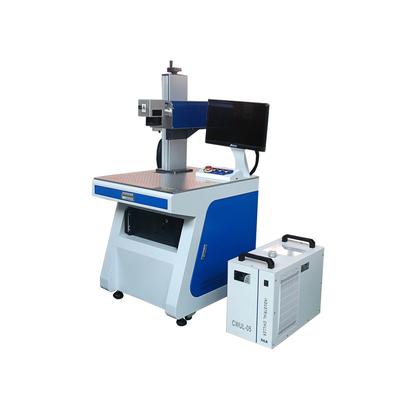

Industrial High Speed Desktop UV Laser Marking Machine
Applicable materials
The materials with high heat radiation reaction, some special materials, most metal and non- metal materials, mainly the higher marking precision such as mobile phone buttons, plastic translucent keys, electronic components, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Applicable Industry
It is applied in ultra-fine laser marking in high-end market. It can mark and engrave on toys wood. UV lasr marking machine adopts UV laser generator. The ultra-small focusing spot of 355nm UV light doesn’t break the surface of glass. There is no heating effect when marking, so it would not deform the lenses and upper. The machine can mark, cut and engrave for special materials.
Technical parameters
|
Model |
SH-UV 3W/5W/10W |
|
Laser type |
UV laser |
|
Wavelength |
355nm |
|
Laser pulse frequency |
2-1000KHz |
|
Beam quality |
1.2-1.8MOO |
|
Laser power |
3W/5W/10W |
|
Marking speed |
Less than 15000mm/s |
|
Marking depth |
less than 0.15mm |
|
Repetition precision |
0.01mm |
|
Cooling way |
Water cooling |
|
Power source |
220V/110V |
|
Marking area |
70*70mm/110*110mm/200*200mm |
|
Support format |
PLT, BMP, DXF, JPG, TIF, AI etc. |
|
Temperature |
0-35 centigrade |
|
Humidity |
less than 70% |
|
Total power |
500W |
|
Laser source life span |
less than80000 hours |
|
Scan head |
SM1064-10 |
|
F-θlens |
F-theta 160 |
|
Control software |
EzCAD (English) 64/32 bits |
|
Control case |
High sealed mini mould case for fiber |
|
Net/gross weight |
130kg/160kg |
|
Package size |
153*62*110cm |
