| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | UV Laser Marking Machine | Laser Type: | Semiconductor |
|---|---|---|---|
| Working Accuracy: | 0.01mm | Application: | Laser Marking |
| Wavelength: | 355nm | Weight (KG): | 150 KG |
| Key Selling Points: | High Safety Level | Laser Power: | AC220V/50-60HZ |
| Marking Speed: | 7000mm/s | Applicable Material: | Metal,plastic,ceromic,PBT |
| Marking Area: | 110mm*110mm | Core Components: | PLC |
| High Light: | 7000mm/s UV Laser Marking Machine,5w UV Laser Marking Machine,5w Plastic Laser Marking Machine |
||

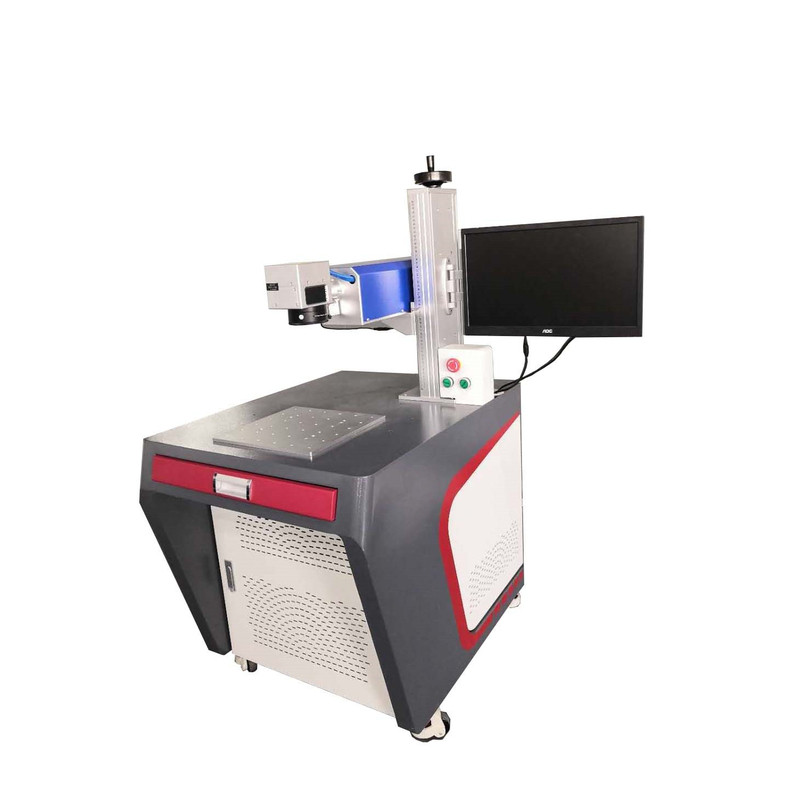

355nm Glass Plastic Ultraviolet Laser Marking Machine
With small UV focus spot and heat affected zone, the Nd:YVO4 UV laser marking machine has high absorptivity to 355nm UV-light, which is suitable for many materials.
1) High-performance ultraviolet laser and superior laser beam quality bring exquisite marking effect for customers;
2) The rotary table shortens unit processing time. Customer benefits grow exponentially at the same time;
3) Equipped with safety hood, it avoids physical injury of operators by misoperation and minimizes the safety risk;
4 )Small size and good cooling performance.
It’s widely used in special materials marking, cutting and processing, such as all kinds of glass, LCD panel, textiles, chip ceramics, semiconductor wafers, IC grains, sapphires, polymer films, etc.
| Model | OPT-UV3 |
| Product name | Laser marking machine |
| Working area | 100x100mm |
| Laser source | 355nm Semi-conductor source |
| Laser power | 3w/5w |
| Software | EZCAD |
| Laser scanner | Sino |
| F-Theta | Wavelength |
| Voltage requirement | 220V/50-60HZ |
| Package size | 940x790x1480mm |
| G.W |
150g |
