| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Fibre Laser Welding Machine | Key Selling Points: | High Accuracy |
|---|---|---|---|
| Pulse Width: | 0.1-20MS | Wavelength: | 1080±5nm |
| Focal Spot Diameter: | 0.1-3mm | Dimensions: | 110*62*127cm |
| Laser Source: | YAG Laser Source | Laser Wavelength: | 0.1-20MS |
| Marking Depth: | 0.01- 0.2 Mm | Laser Power: | 200W |
| Color: | White And Blue | Applicable Material: | Jewelry,metal |
| Power Consumption: | 6KW | ||
| High Light: | 200 Watt YAG Laser Welding Machine,200w laser welding machine,200w Jewelry Laser Welding Machine |
||

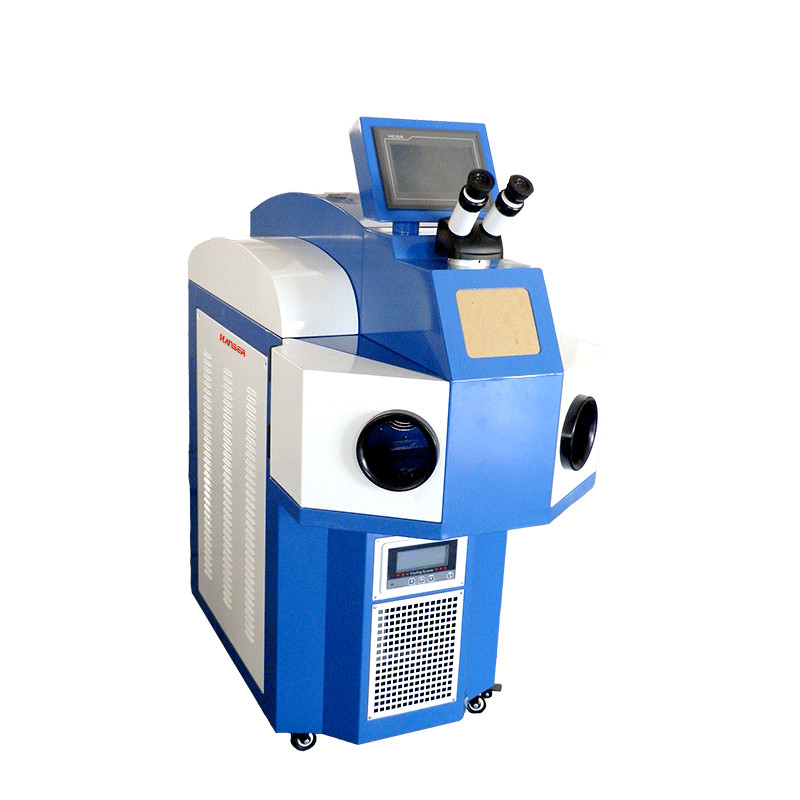

High Accuracy 200W Jewelry YAG Laser Welding Machine
Description

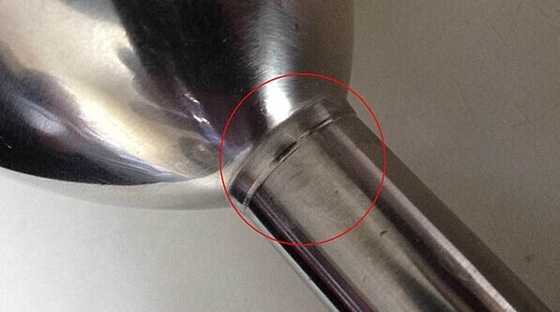

Laser welding is mainly used for welding thin-walled materials and low-speed welding.
The welding process is heat conduction type,the laser radiation and heat process the surface of workpiece.
The surface heat diffusion to the interior through heat conduction.
By controlling the laser pulse width, energy, peak power and repetition frequency etc, the workpiece melts and forms a specific melting pool. With its unique advantages, laser welding has been widely applied to the welding of micro and small parts.
Nowadays, pulsed laser welding machines are mostly used in the glasses welding market. The CX-CE continuous fiber laser welding machine launched by ChuangHeng Laser has greatly improved the overall processing efficiency and welding effect.
|
Item Name |
Technical Parameters |
|
Model |
HTW-200 |
|
Laser power |
200W |
|
Laser wavelength |
1064nm |
|
Laser type |
YAG fiber laser source |
|
Pulse Width |
≤20ms |
|
Pulse Frequency |
≤50Hz |
|
Beam Diameter |
0.1-3.0mm |
|
Power Supply |
220V±10% /50Hz and 60Hz compatible |
|

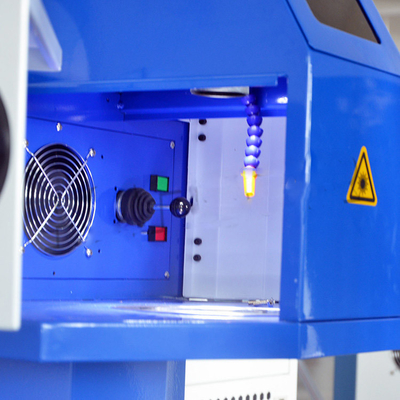

Chamber Illumination |
LED circle lamps |
|
Parameters Memorization |
10 groups |
|
Protection Alert |
flow alert |
|
Package |
non-fumigation Plywood case |
|
Language Display |
Chinese/English |
|
Laser Energy |
40J/80J |
|
Machine Dimensions |
Welder:900*550*650mm |
|
Running Environment |
5℃-30℃, 5%-75% humidity |
|
Net Weight |
150kg(welder) |
