| Place of Origin: | CHINA |
| Certification: | ISO,CE |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Wooden cases standard export package |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200-500 Sets/Month |
| Name: | Metal Laser Welding Machine | Output Power: | 200W/300W/400W |
|---|---|---|---|
| Laser Type: | YAG | Pulse Width: | 0.5~20ms, 0.5~20ms |
| Dimensions: | 1250mm*620mm*1240mm | Wavelength: | 30J/6ms(Optional 60J/12ms) |
| Key Selling Points: | High Accuracy | Pulse Frequency: | 0.5~20HZ |
| Usage: | Mold Repair. Repair Welding | Cooling Method: | Water Cooling |
| High Light: | 1064nm Stainless Steel Laser Welding Machine,YAG Metal Laser Welding Machine,200W Metal Laser Welding Machine |
||

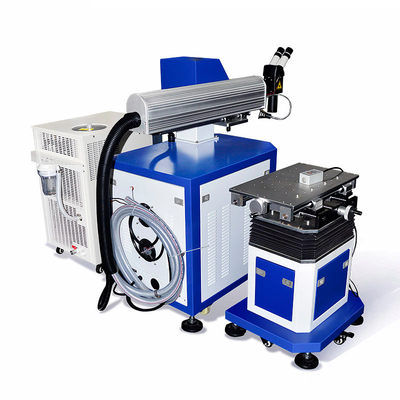

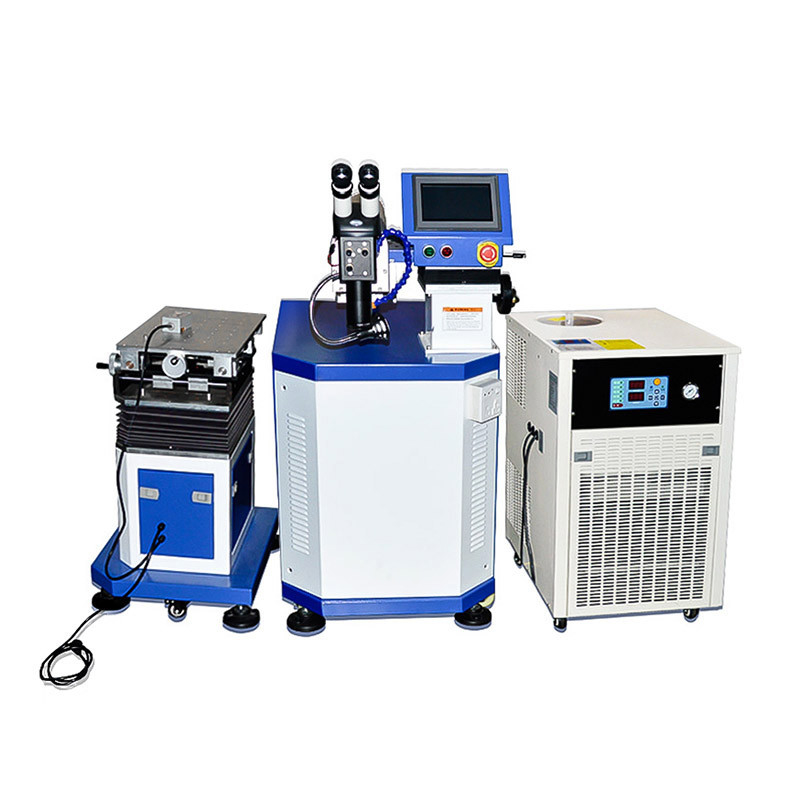

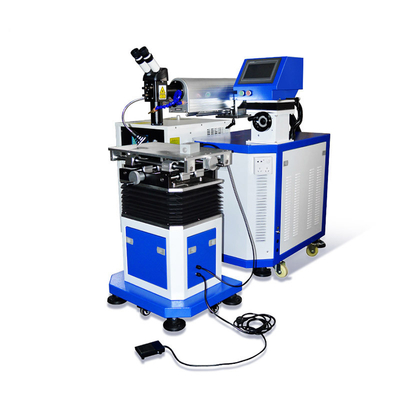

High quality 300W YAG mould stainless steel laser welding machine
Product Description
MT-W series laser welding machine using Nd3 +: YAG solid-state laser, after beam expander, reflection (or optical fiber transmission) , the pulsed laser focused on object to be welded, work pieces can hand-held or fixture with clamps , Then the laser trigger foot switch effect on the work piece, moreover, it also can be an external control system for automatic welding. Frequency, pulse width, table speed, the moving direction of the pulse laser welding controlled through computer, the power of the laser frequency, pulse width can be adjusted to different settings to control the laser pulse energy.
| Model | MT-W200 | MT-W300 | MT-W400 |
| Laser Type | YAG | ||
| Laser wavelength | 1064m | ||
| The maximum laser output power | 200W | 300W | 400W |
| Maximum peak power laser | 6-7KW | ||
| Max.Laser Pulse Width | 30J/6ms(Optional 60J/12ms) | ||
| Pulse Width | 0.5~20ms | ||
| Pulse frequency | 0.5~20HZ | ||
| Number of Pulse Shape | 50 groups | ||
| Closed Loop Feedback Function | Current Feedback | ||
| Aiming Position | MOTIC/LEICA Microscopy | ||
| Repeat positioning accuracy table | 0.02mm | ||
| X/Y/Z table size (manual) | 250mm*140mm*230mm(Auto Optional) | ||
| The maximum laser pulse energy | 50J/10ms | ||
| The minimum spot diameter | 0.2mm | ||
| Z-axis main beam lift (electric motor) | 110mm | ||
| worktable load | 250kg | ||
| Observation Systems | Microscope (10X) | ||
| Working drive | hand wheel and motol drive | ||
| Cooling Method | water cooling | ||
| Electricity demand | 220V±5%/50HZ/15-32A | ||
| Machine maximum power consumption | 1.8-6KW | ||
| Machine Dimensions | 1250mm*620mm*1240mm | ||
