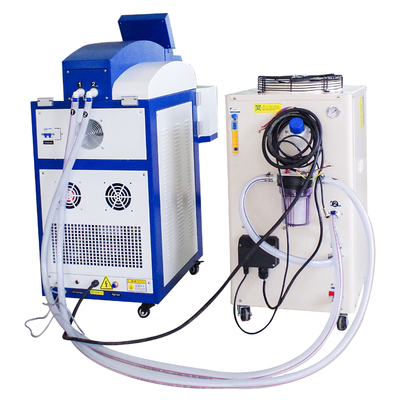

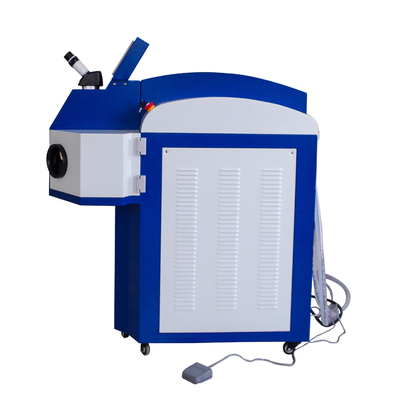

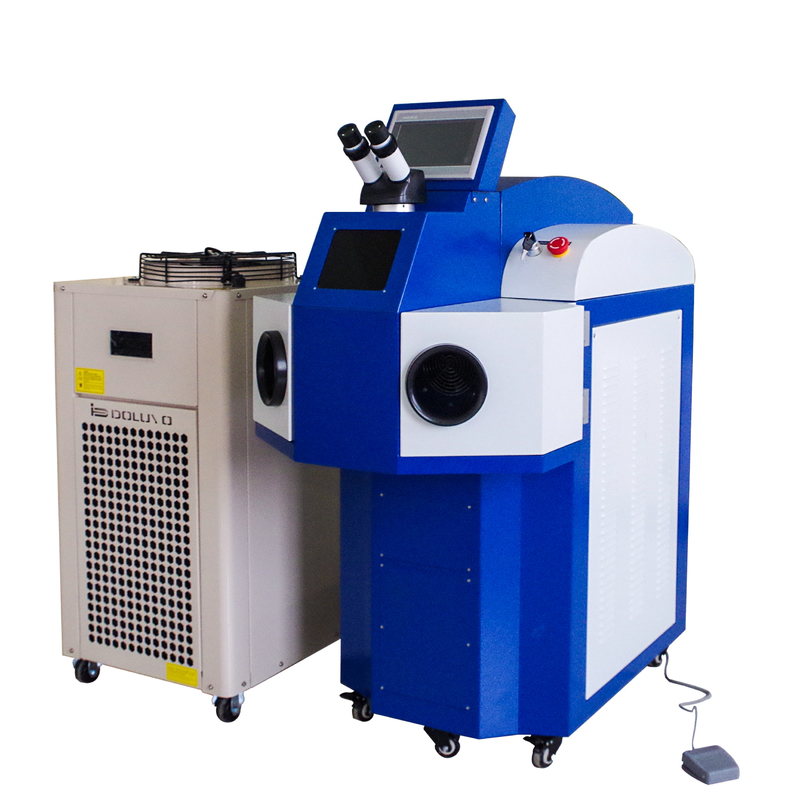

High Precision 200w Jewelry Laser Welding Machine For Metal

Product Details:

Place of Origin:	CHINA
Certification:	ISO,CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden cases standard export package
Delivery Time:	5-7 working days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	200-500 Sets/Month

Contact Now

Detailed Product Description

Product Name:	Jewelry Laser Welding Machine	Laser Power:	200w
Pulse Width:	0.1~20ms	Wavelength:	1064nm
Focal Spot Diameter:	0.1~2mm	Dimensions:	113x66x136
Weight (KG):	135 KG	Key Selling Points:	Easy To Operate
Application Material:	Metal Jewelry	Welding Depth:	0.1-2.5mm
Cooling System:	Water Cooling	Welding Mode:	Manual Handheld
High Light:	200w Jewelry Laser Welding Machine , YAG 200w laser welding machine , Water Cooling YAG Laser Welding Machine

High Precision 200w Jewelry Laser Welding Machine For Metal

Jewelry 200w laser welding machine for metal

1. Jewelry laser welder is high precision (0.1-2mm spot size)welding methold and laser beam is very thin.
2. Laser is quick, Frequency can reach 20HZ.
3. Jewelry, glasses frame, mould, dental teeth need laser welding way which have beautiful welding joints.

4. Jewelry Laser welding machine is widely used in all kinds of metal like gold, sillver, bronze, aluminum, steel and titanium
5.With the industrial chiller cooling, you can work continuously for a long time

Specification

Name	200W Jewelry laser welding machine
Laser power	200w
Laser single energy	90J
Pulse width	0.1ms~20ms
Pulse frequency	0~50HZ
Laser welding depth	0.1~3mm
Machine power consumption	6kw
Observing system	High 10×Microscope / CCD
Electrical requirement	AC220V±10%/50Hz 30A
Cooling system	Water cooling
Protective gas	Argon
